1. Product Brief Introduction

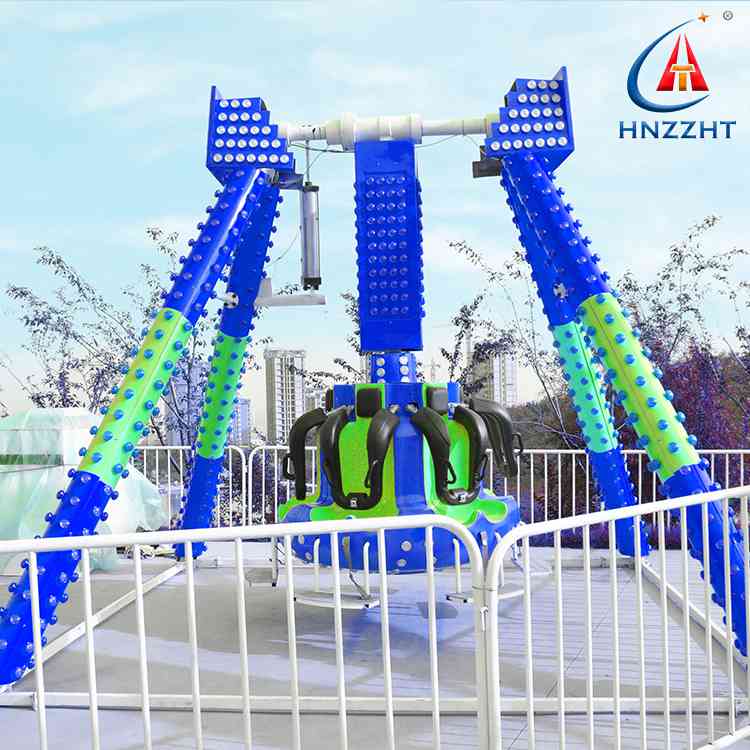

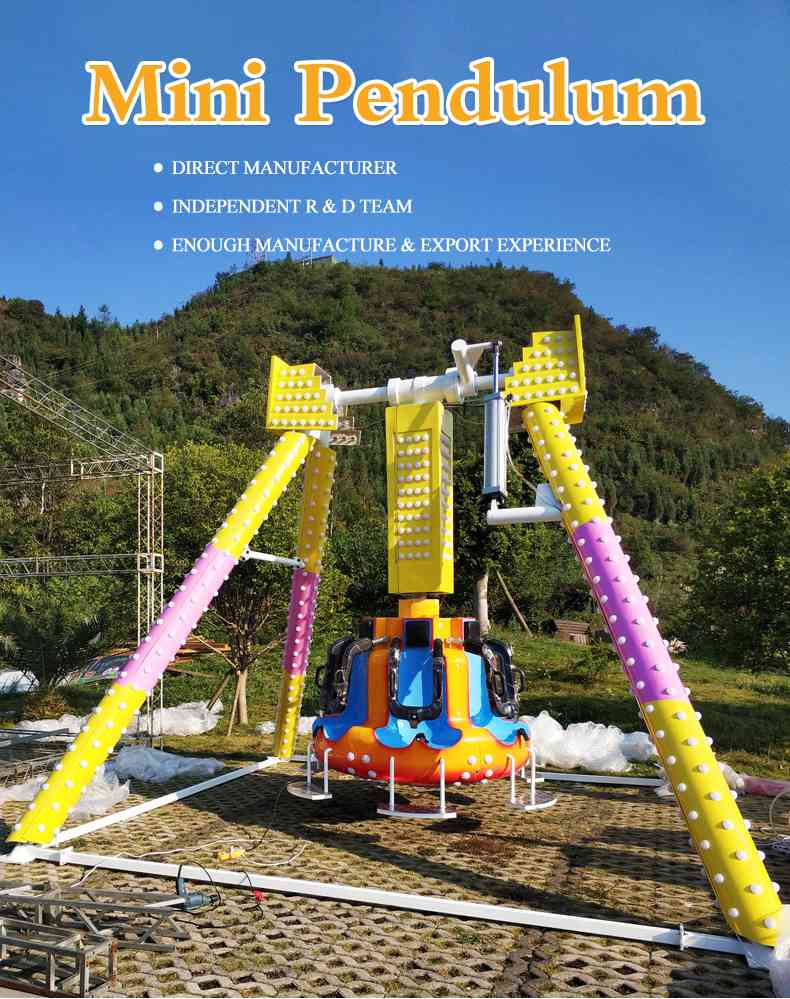

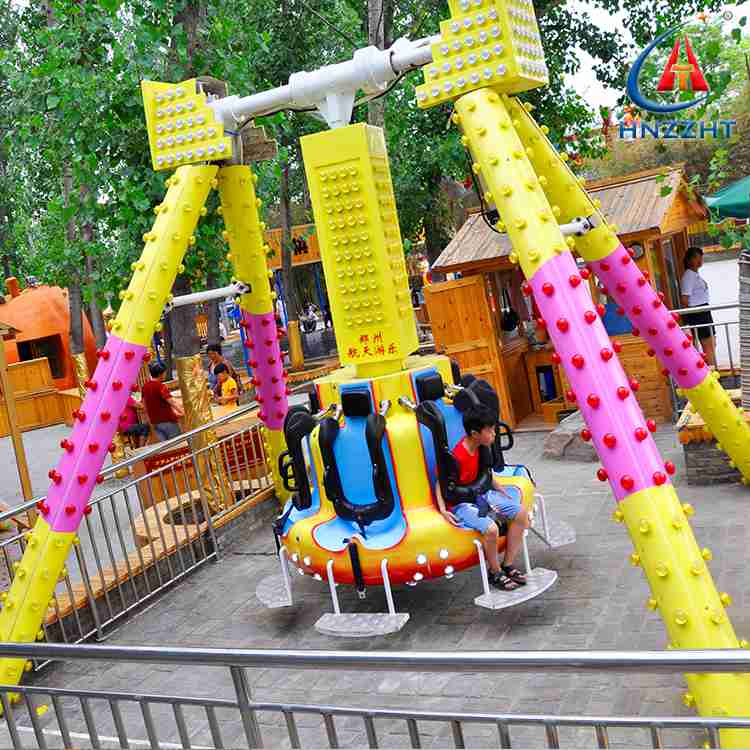

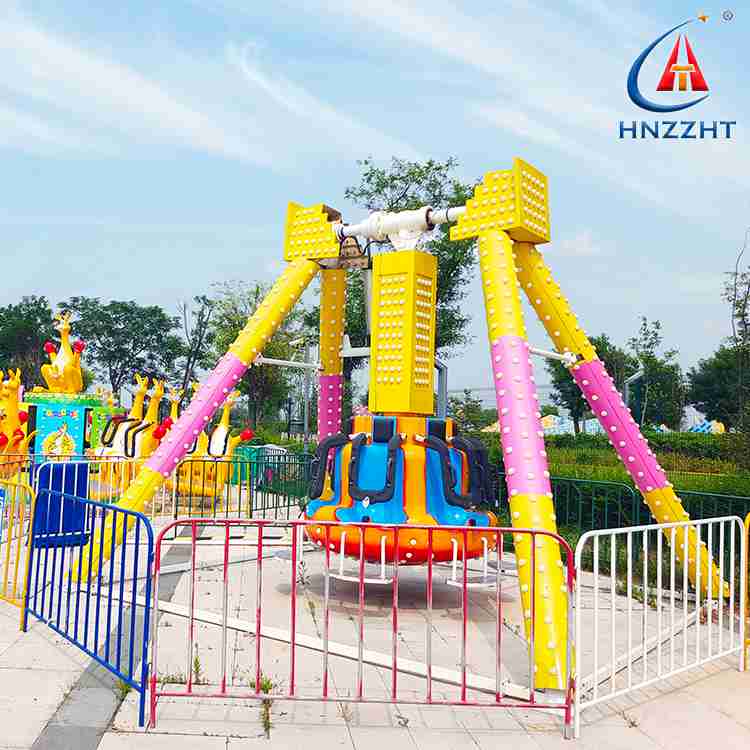

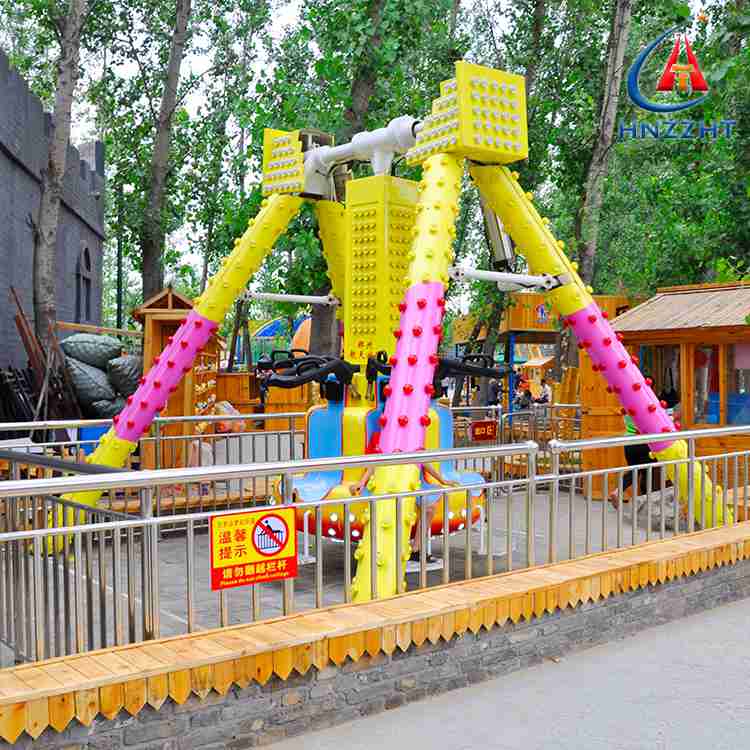

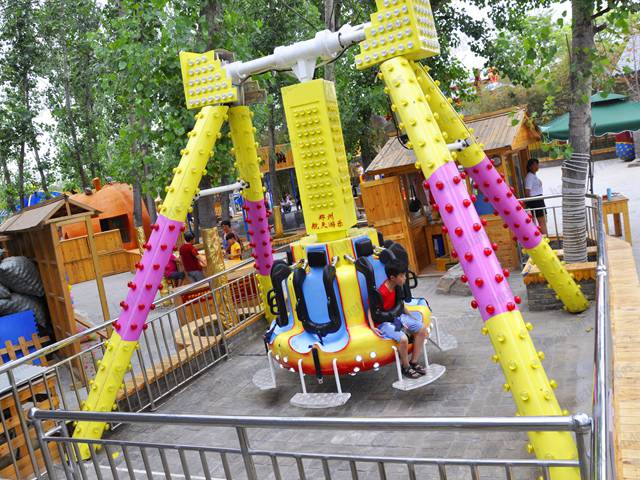

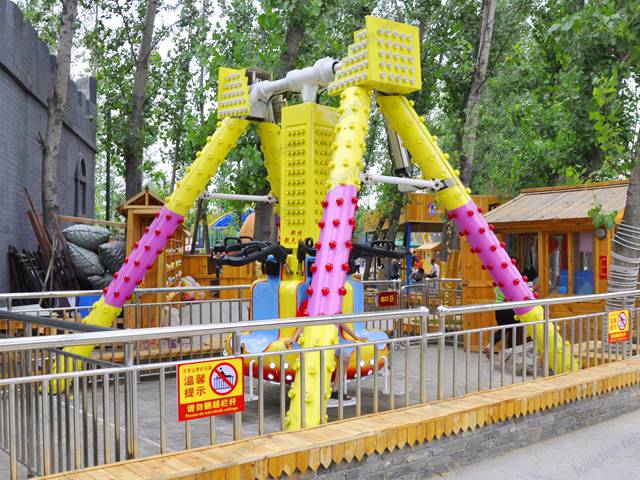

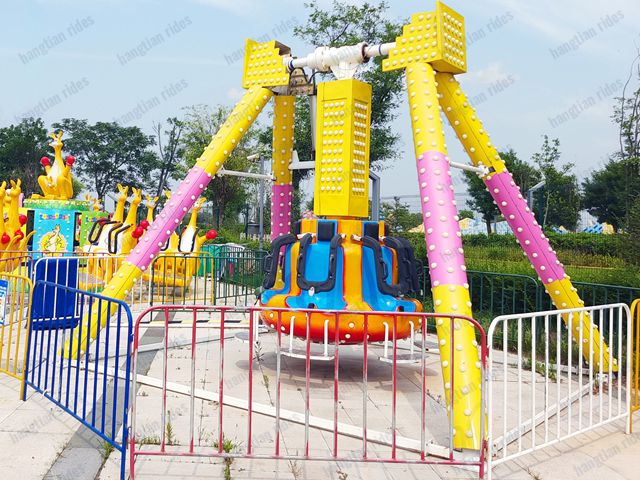

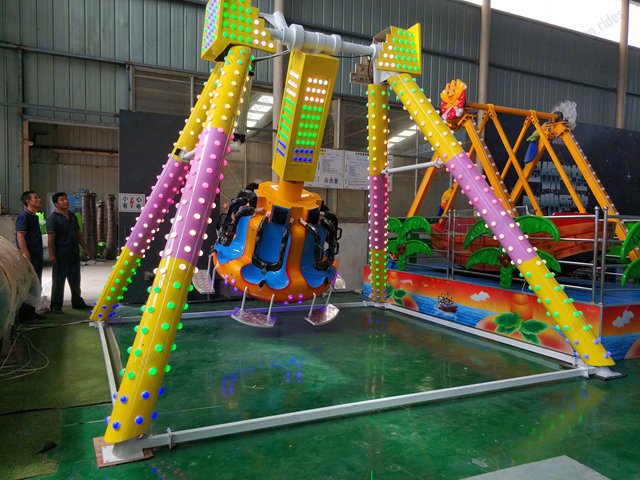

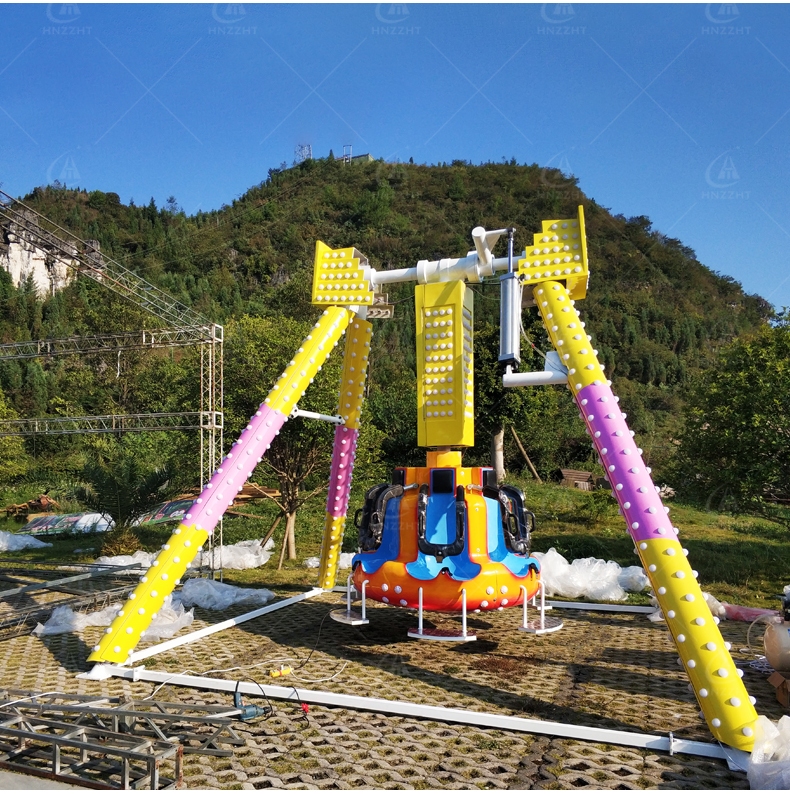

Kids Mini Pendulum Amusement Ride is a scaled-down, safe and mild thrilling children’s amusement equipment developed based on the classic big pendulum principle. As a popular transitional ride between gentle family rides and high-thrill amusement projects, it perfectly retains the classic swinging fun of the big pendulum while lowering the swing height, swing angle and movement intensity, fully fitting the physical endurance and entertainment needs of children and young teenagers. The equipment features compact structure, safe movement, cute modeling and strong entertainment. It avoids excessive dizziness and extreme weightlessness, bringing mild and exciting swinging experience for kids. With low site occupation, stable operation, ultra-low failure rate and high safety factor, it has become a core star project for children’s amusement parks, parent-child playgrounds, community parks and indoor family entertainment centers, effectively attracting child passenger flow and creating stable commercial benefits for operators.
Core Technical Parameters: The conventional kids mini pendulum covers an area of 8m×6m with a total equipment height of 4.2 meters. It is available in 6/8/12 seats optional configuration, adapting to different venue passenger flow demands. The rated power is 4kW with 380V industrial voltage. The maximum swing angle is 30 degrees, and the maximum lifting height is 1.5 meters. A single operation cycle is 120 seconds. Suitable for children with a height of 1.1m–1.5m, the whole machine has a lightweight and stable structure, low center of gravity, strong wind resistance and excellent safety performance, fully meeting long-term indoor and outdoor commercial operation standards.
2. Product Operation Principle
The Kids Mini Pendulum adopts mature motor-driven mechanical swing structure and intelligent frequency conversion control system, composed of fixed base, support frame, swing arm, integrated passenger cabin and PLC program control system. The operation principle is stable, safe and mature. After starting the equipment, the frequency conversion system drives the swing arm to perform low-amplitude reciprocating arc swinging movement. Different from the extreme swing of large pendulum, this mini model limits the swing angle and height within a safe range, realizing gentle and rhythmic front and rear swinging motion.
The whole operation process realizes slow start, stable acceleration, uniform swinging and slow deceleration stop. The movement is smooth without jitter, impact and abnormal noise. During operation, children can feel slight weightlessness and aerial swinging fun, with moderate stimulation and no dizziness or fear. The equipment supports adjustable operation speed and swing amplitude, which can freely switch super gentle kid mode and dynamic mild thrill mode. After the operation cycle ends, the swing arm will automatically reset to the horizontal static state to ensure safe and convenient boarding and alighting. The simple and reliable operation logic is very suitable for long-term repeated commercial operation for children groups.
3. Product Material Details
-
Main Load-Bearing Steel Structure: The equipment base, support frame and swing arm are all made of high-standard Q235 carbon steel. The integral thickened welding base effectively lowers the center of gravity, greatly improving the overall stability, anti-tilt performance and wind resistance. All key welding parts adopt full welding process and pass manual fine polishing and professional flaw detection, eliminating welding cracks and structural hidden dangers. The steel surface undergoes multi-layer anti-corrosion treatment including sandblasting rust removal, anti-rust primer and outdoor weather-resistant topcoat. It is anti-ultraviolet, rainproof and high-temperature aging resistant, with an outdoor service life of more than 15 years.
-

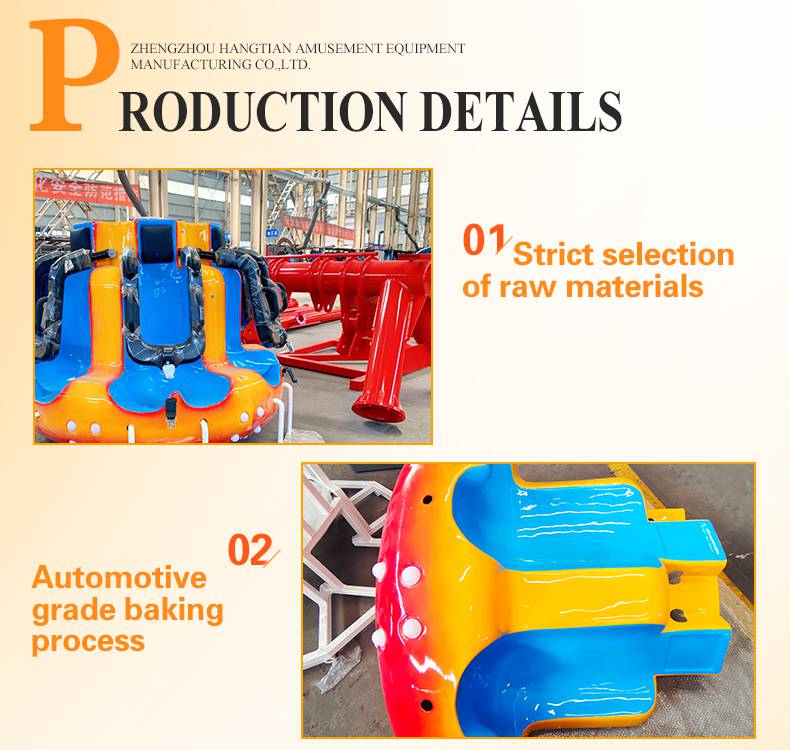

Cabin & FRP Decorative Parts: The passenger cabin and outer decorative coverings are made of high-density thickened FRP fiberglass material, which is environmentally friendly, non-toxic, tasteless, impact-resistant and crack-resistant, fully meeting children’s amusement safety standards. The surface adopts automobile-grade high-temperature baking paint and hand-painted cartoon craftsmanship, with bright and soft color, smooth texture and long-term color fastness without fading. The cabin interior adopts ergonomic integrated seat design, equipped with high-elastic soft sponge cushion, which is comfortable and skin-friendly, effectively protecting children’s riding safety and comfort.
-

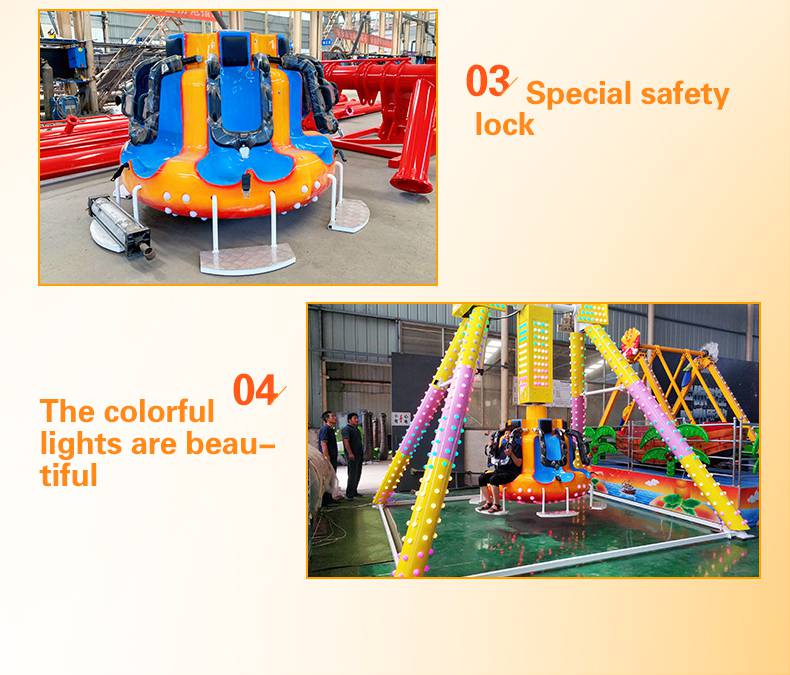

Safety Protection Accessories: Each seat is equipped with a professional thickened pneumatic safety pressure bar and high-strength safety belt to form double safety protection. All safety accessories are rounded and polished without sharp edges to prevent children from collision injury. All mechanical connection nodes adopt Grade 8.8 hot-dip galvanized anti-loosening bolts. The rotating and swinging joints are equipped with high-precision wear-resistant bearings, ensuring flexible, silent and stable operation after long-term high-frequency use.
-
Driving & Electrical System: The core motor and transmission accessories adopt low-noise, energy-saving and high-efficiency brand configurations, with stable power output and no stuck failure. The electrical system reaches IP55 waterproof and dustproof grade, equipped with national standard flame-retardant leakage-proof cables and fully sealed waterproof electrical box. It can adapt to indoor and outdoor complex environments such as wind, rain and high temperature. The intelligent PLC control panel is simple to operate and sensitive in response, supporting timed operation and automatic reset functions.
4. Suitable Application Scenarios
-
Children’s Amusement Parks & Parent-Child Parks: As the core mild thrill project in the children’s amusement area, it fills the gap between pure gentle rides and extreme thrill rides, enriching the park’s amusement hierarchy. It is the best choice for children to experience preliminary thrilling entertainment, greatly improving the playability and passenger stickiness of parent-child venues.
-
Scenic Spots & Cultural Tourism Resorts: Suitable for scenic children’s amusement areas, resort leisure squares and tourist characteristic towns. The cute cartoon modeling can beautify the venue environment, enrich parent-child entertainment supporting facilities, extend tourists’ staying time, and enhance the comprehensive service grade of scenic spots.
-
Urban Community Parks & Kindergarten Playgrounds: With high safety, moderate movement and low noise, it fully meets the daily entertainment needs of urban children. It is an ideal supporting amusement facility for community public leisure parks and children’s activity centers.
-
Indoor Playgrounds & Shopping Mall Amusement Zones: The equipment has compact floor area and no excessive height limit, which is very suitable for indoor atriums and mall amusement areas. It can effectively gather commercial popularity, activate venue atmosphere and drive secondary consumption.
-
Global Overseas Family Amusement Markets: The equipment complies with international amusement safety standards and can provide CE, TUV and other international certification documents. It is widely exported to Europe, America, Southeast Asia, Middle East, Africa and other regions, suitable for overseas family amusement parks, carnival events and indoor FEC venues.
5. Design & Shape Features
The Kids Mini Pendulum adopts lively and lovely cartoon children’s style design, abandoning the heavy industrial sense of large pendulum. The overall structure is light, stable and delicate, with smooth and rounded lines throughout, fully in line with children’s aesthetic preferences. The swing arm and cabin are decorated with rich cartoon elements, and the colorful and lively matching creates a strong childlike and joyful amusement atmosphere.
The product supports personalized full-theme customization. It can be designed into candy color style, lollipop cartoon style, ocean style, animal cute style and other mainstream children’s theme styles. The cabin surface can be printed with exclusive park LOGO, cartoon patterns and creative elements. The whole equipment has high appearance and strong scene integration, which can quickly become the visual focus and popular check-in spot of children’s amusement venues, greatly improving the overall aesthetic grade of the park.
6. Lighting & Sound System
-

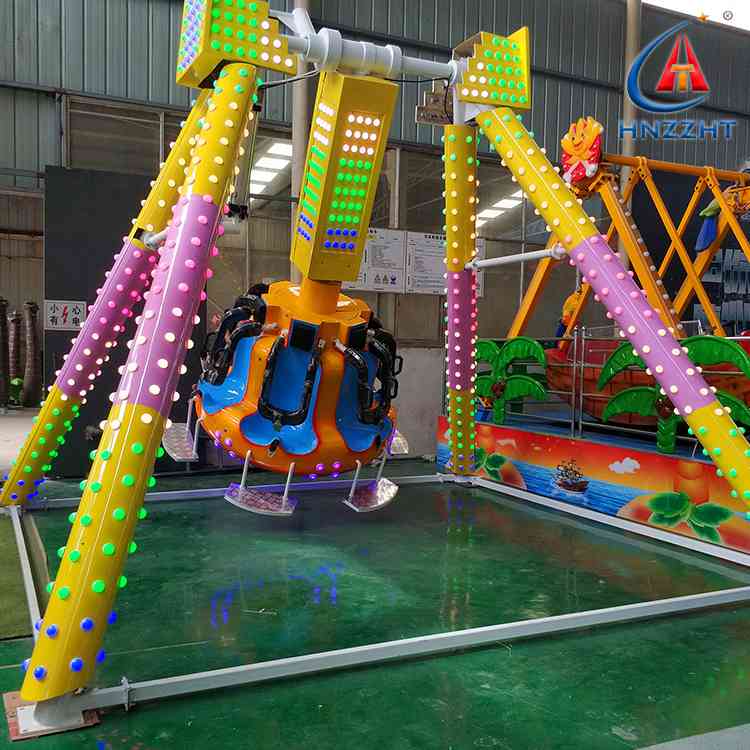

Dreamy Kids LED Lighting System: The whole machine is equipped with high-brightness soft RGB full-color LED lights. The support frame, swing arm and cabin edges are wrapped with colorful flowing light strips and embedded ambient spotlights. The lighting supports multiple dynamic effects such as steady bright, gradient color conversion and rhythmic flashing. The light color is soft and not dazzling, which is friendly to children’s vision. At night, the swinging equipment drives gorgeous dynamic light tracks, creating a dreamy and lovely night scene atmosphere and improving the venue’s night passenger flow.
-
Child-Friendly Immersive Sound System: Equipped with high-fidelity professional surround speakers, built-in cheerful, lively and relaxed children’s background music. The music rhythm is synchronized with the swing frequency of the equipment, with clear sound quality and moderate volume, no noise and no harsh sound. It also supports customized exclusive music and multi-language safety broadcast prompts, creating a happy and relaxed playing atmosphere and enhancing children’s immersive entertainment experience.
7. Quality Assurance
-
Standardized Qualification Production: The equipment is strictly manufactured in accordance with national GB 8408-2018 amusement equipment safety standards and TSG 71-2023 special equipment safety specifications. The manufacturer holds complete special equipment production and installation qualifications. All products are equipped with official factory certificates, material inspection reports and type test reports, which can smoothly pass government annual inspection and international third-party safety certification.
-

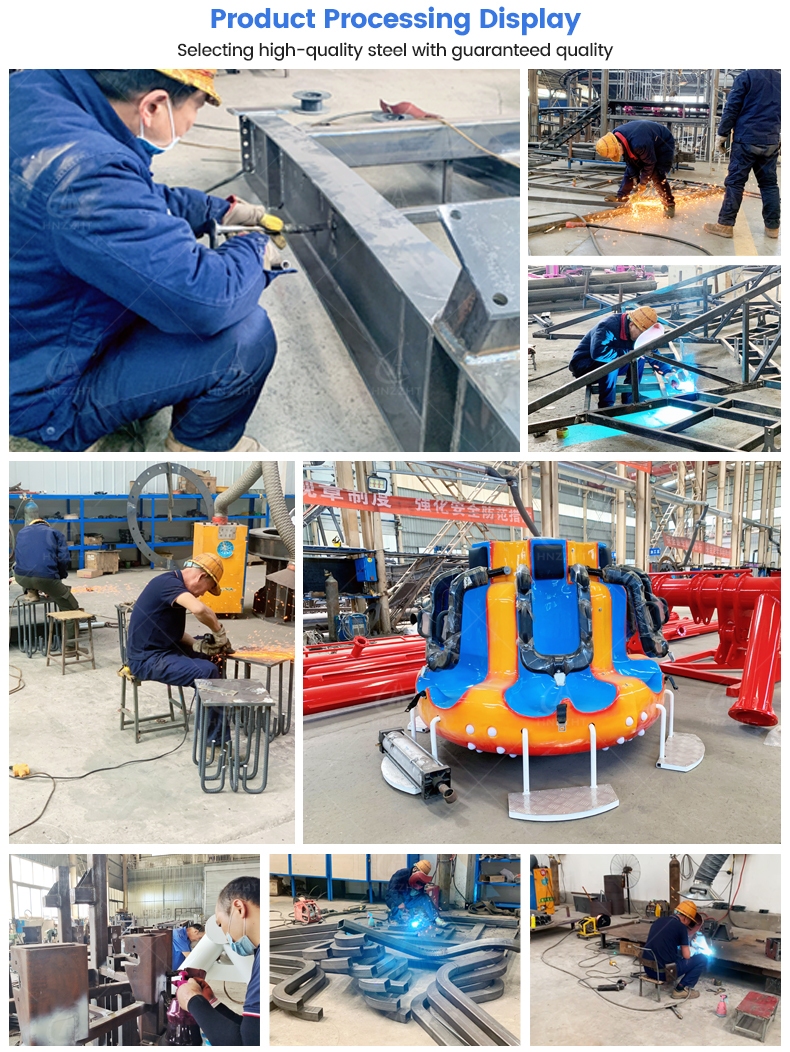

Full-Process Strict Quality Control: All steel raw materials, FRP materials, transmission parts and electrical accessories are strictly sampled and inspected before warehousing. Every process including welding, assembly, polishing, painting and electrical wiring is checked layer by layer. Before delivery, the equipment undergoes 72 hours of continuous no-load and full-load swing test. All swinging, lighting and sound functions are fully debugged to ensure stable performance and zero hidden dangers before delivery.
-
Multi-Layer Safety Redundancy Design: Equipped with swing angle limit protection, overload protection, power-off emergency stop system and emergency stop button. The low-center-of-gravity anti-tilt structure effectively avoids shaking and tilting during operation. In case of sudden power failure or equipment abnormality, the system will automatically lock the swing arm to stop safely, ensuring the absolute safety of child passengers.
8. After-Sales Guarantee
-
One-Stop Full-Cycle Service: Provide free pre-sales venue survey, site layout planning and foundation construction drawing guidance. Support global door-to-door installation, commissioning and professional operator training. Provide complete English and Chinese operation manuals, daily maintenance tutorials and installation videos to ensure customers can independently operate and maintain the equipment.
-
Long-Term Official Warranty: The whole machine enjoys 3-year free warranty service, and core components such as motor, reducer and transmission swing arm structure are guaranteed for 5 years. During the warranty period, all non-human damaged parts are replaced free of charge with zero maintenance cost for customers.
-
24-Hour Rapid Response Mechanism: Professional overseas after-sales technical team provides 24-hour online technical support. Simple equipment faults can be solved by remote guidance within 2 hours; for complex on-site faults, professional engineers can arrive at the site within 48 hours for maintenance, effectively reducing equipment downtime and operating losses.
-
Adequate Original Spare Parts Supply: The factory has sufficient stock of original wearing parts including LED lights, speakers, safety belts, connecting bolts and electrical accessories. All spare parts can be delivered quickly within 48 hours, and a set of free wearing parts is provided when leaving the factory to ensure long-term stable operation of the equipment.
-
Value-Added Customized Service: Provide free later-stage equipment theme upgrading, color repainting, lighting system optimization and performance debugging. Provide professional parent-child venue operation suggestions to help customers improve equipment popularity and maximize long-term operating profits.
9. Product Summary
Kids Mini Pendulum Amusement Ride is a high-safety, high-appearance and high-cost-performance children’s mild thrill amusement equipment. It perfectly balances entertainment fun and riding safety, filling the market gap of transitional parent-child thrilling projects. With lovely cartoon modeling, gentle and stable swinging movement, dreamy night lighting and rigorous multi-layer safety protection design, it is deeply loved by child tourists and parent-child groups. The equipment has compact floor area, wide venue adaptability, simple maintenance and low operating cost, with high return on investment. It is the ideal upgrading and new-building core project for various parent-child amusement parks, community playgrounds and commercial amusement venues, and a high-quality hot-selling product for global children’s amusement equipment procurement.
