1. Product Brief Introduction
The 24 Set Pirate Ship Swing Ride is a classic iconic thrilling amusement equipment widely applied in global amusement venues. As a medium-sized high-traffic swing ride, it perfectly balances thrilling experience and operational safety, catering to teenagers and adult pursuit of moderate excitement while retaining high safety for mass tourism operation. This equipment simulates the swinging state of ancient pirate ships on the waves, performing reciprocating pendulum swing movements from low to high. With a reasonable 24-seat passenger capacity, it realizes efficient passenger flow turnover, stable operation and high entertainment appeal. Featuring mature mechanical structure, ultra-low failure rate, strong weather resistance and long service life, it has become a must-have core thrilling project for large and medium-sized amusement parks, scenic tourist resorts and cultural tourism parks, bringing continuous and stable economic benefits to operators.
Core Technical Parameters: The equipment covers a ground diameter of 14m×10m with a total height of 10 meters, equipped with 24 standard passenger seats. The rated power is 22kW with 380V industrial voltage. The maximum swing angle reaches ±45 degrees, and a single operation cycle is 180 seconds. The whole machine adopts heavy-duty steel structure with stable weight and strong wind resistance, fully adapting to long-term outdoor open-air commercial operation. It supports adjustable swing amplitude and operation speed, which can flexibly adapt to different passenger groups and venue operation needs.
2. Product Operation Mode
The 24-seat pirate ship adopts mature and reliable hydraulic transmission driving structure, consisting of main support frame, arc track, pirate ship cabin, hydraulic power system, frequency conversion control system and safety limit device. After starting the equipment, the hydraulic power unit provides stable power to push the ship body to swing back and forth along the fixed arc track. The equipment starts slowly with gentle acceleration, gradually increases the swing height, and finally forms a high-altitude reciprocating swing state, simulating the ups and downs of a pirate ship in the wind and waves, bringing tourists obvious weightlessness and swinging thrilling feeling.
Equipped with professional frequency conversion speed regulation technology, the whole operation process is stable and smooth without jitter, impact and abnormal noise. The system supports one-key automatic operation, timed operation and amplitude adjustment. Operators can set low-amplitude gentle swing for children and high-amplitude thrilling swing for young tourists according to actual needs. The equipment is built-in with slow start and slow stop program, which avoids sudden stop and effectively protects passenger riding comfort. When the running cycle ends, the ship body will automatically reset to the horizontal static state, which is convenient for safe boarding and alighting. With intelligent linkage protection program, the equipment will automatically alarm and stop in case of abnormal operation, ensuring safe and standardized operation all the time.
3. Product Material Details
-
Main Support Steel Structure: The whole support frame, arc track and load-bearing base are all made of high-strength Q345 carbon steel. The thickened seamless steel pipe and integral welded base greatly improve the overall compression resistance, impact resistance and structural stability. All key load-bearing welding parts adopt full penetration welding process and pass ultrasonic flaw detection to eliminate welding cracks and hidden dangers. The surface undergoes multi-layer anti-corrosion treatment including sandblasting rust removal, anti-rust primer and outdoor weather-resistant topcoat. It has excellent anti-ultraviolet, anti-aging and rainproof performance, adapting to long-term outdoor wind and sun exposure, with a service life of more than 15 years.
-

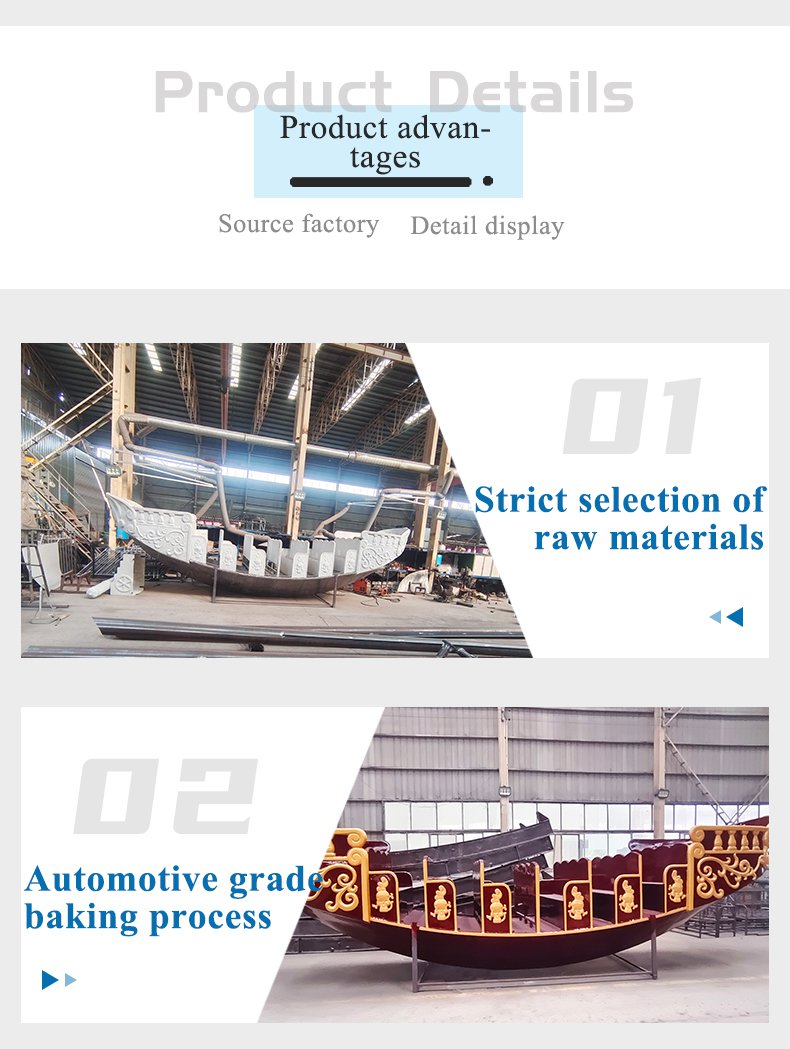

Ship Cabin & Decorative Materials: The pirate ship cabin body and all decorative parts are made of high-density thickened FRP fiberglass material, which is environmentally friendly, non-toxic, impact-resistant, crack-resistant and non-deformable. The surface adopts automobile-grade high-temperature baking paint and manual fine painting technology, with bright color, strong three-dimensional sense and long-term color fastness without fading. The interior is equipped with ergonomic integrated seats and anti-slip pedal design, with comfortable riding posture and strong stability. All decorative details are finely polished without burrs, meeting international safety and environmental protection standards.
-
Safety Protection Accessories: Each seat is equipped with a professional thickened pneumatic safety pressure bar and high-strength safety belt, forming double safety protection. All safety belts are made of high-tensile polyester material with strong bearing capacity and wear resistance. The connecting parts of the ship body and support frame adopt Grade 8.8 hot-dip galvanized high-strength bolts, which are anti-loosening and anti-rusting, avoiding structural loosening during long-term high-frequency swing operation. The equipment is also equipped with secondary safety steel wire ropes to provide double insurance for extreme working conditions.
-
Hydraulic & Electrical System: The core hydraulic system adopts famous brand hydraulic cylinders and power units, with stable power output, low noise and no oil leakage. The electrical system reaches IP55 waterproof and dustproof grade, equipped with national standard flame-retardant and leakage-proof cables and waterproof electrical boxes, which can adapt to outdoor rain, snow and high-temperature harsh environments. The control console adopts intelligent PLC integrated control panel, with simple operation, sensitive response and stable performance.
4. Suitable Application Scenarios
-

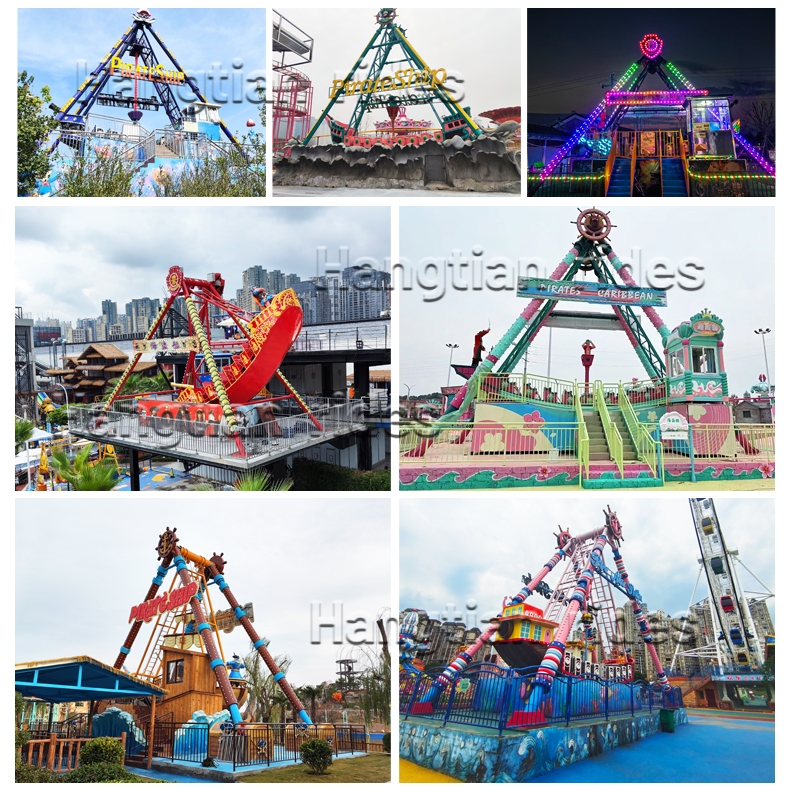

Large and Medium-Sized Amusement Parks & Theme Parks: As the core moderate-thrill project in the park's thrilling amusement area, it matches roller coasters, swing chairs and other equipment to enrich the park's amusement hierarchy. It covers a wide audience, effectively attracting young people and family tourists, and greatly improves the overall play richness and passenger stickiness of the venue.
-
Scenic Spots & Cultural Tourism Resorts: Suitable for large scenic leisure squares, resort amusement areas and tourism characteristic towns. The unique pirate theme styling can enrich the scenic entertainment system, break the single sightseeing mode, extend tourists' staying time, and create a popular scenic check-in spot to enhance the overall popularity of the scenic spot.
-
Urban Comprehensive Parks & Cultural and Sports Parks: With moderate stimulation, high safety and stable operation, it is very suitable for public urban parks and leisure and entertainment parks. It can meet the entertainment needs of different age groups and enrich the public cultural and entertainment supporting facilities of the city.
-
Commercial Tourism Projects & Holiday Parks: It can be used as a key supporting amusement project for commercial tourism complexes and holiday activity parks to gather on-site popularity, activate venue atmosphere, drive pedestrian flow and secondary consumption, and improve the commercial operation value of the venue.
-
Overseas Amusement Market: The equipment complies with international amusement safety standards, and can provide CE, TUV and other international certifications. It is widely exported to Europe, America, Southeast Asia, Middle East, Africa and other regions, fully adapting to local outdoor amusement venue construction and commercial operation standards.
5. Design & Shape Features

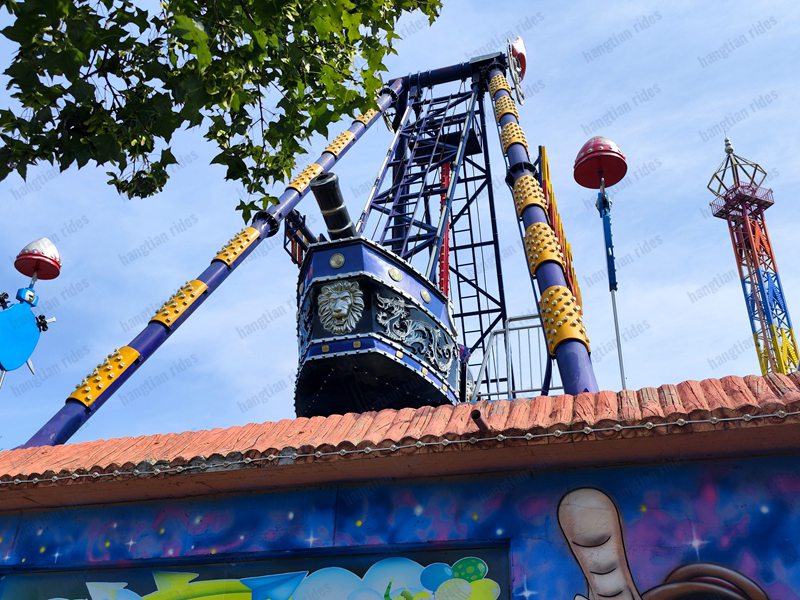

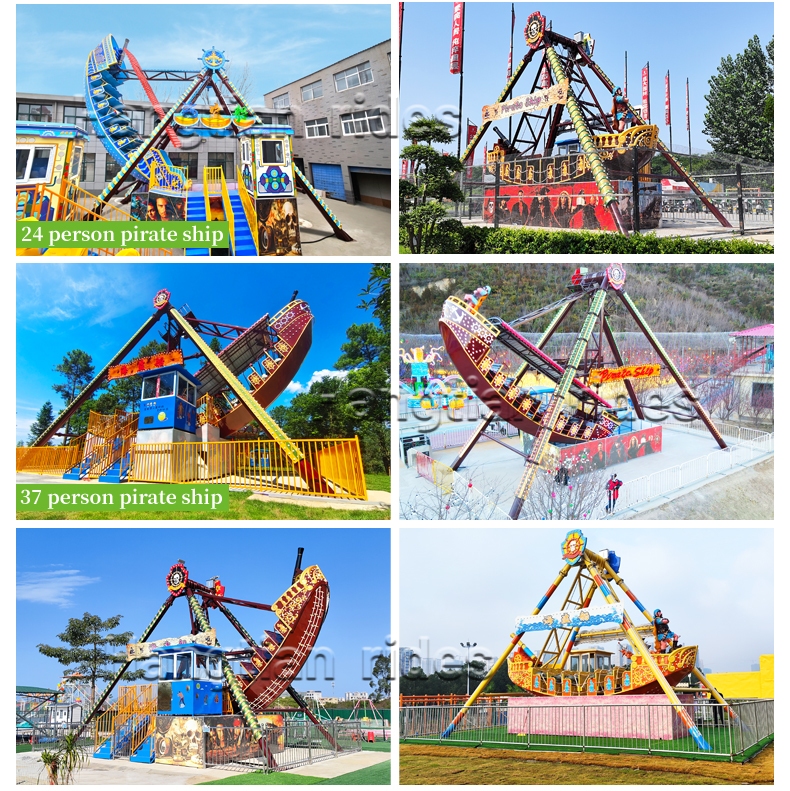

The 24-seat pirate ship adopts classic marine pirate theme design, with atmospheric and vivid overall styling and strong three-dimensional sense of scene. The whole ship body simulates the shape of a medieval sailing pirate ship, equipped with simulated ship boards, ship edges, pirate pattern decorations and classic sail modeling, restoring the real pirate ship sailing scene. The arc support frame is stable and grand, with smooth and powerful lines, highlighting a strong sense of power and adventure.
The equipment supports personalized full-theme customization. It can be matched with classic retro pirate style, cartoon cute style, marine wind fantasy style and other theme styles. The ship body surface can print exclusive LOGO, pirate patterns, marine elements and personalized graffiti. The color matching is diverse, including classic retro wood color, vibrant marine blue, gorgeous carnival color and other schemes. The overall appearance is highly recognizable and ornamental, easy to become the visual focus and landmark amusement project of the venue.
6. Lighting & Sound System
-

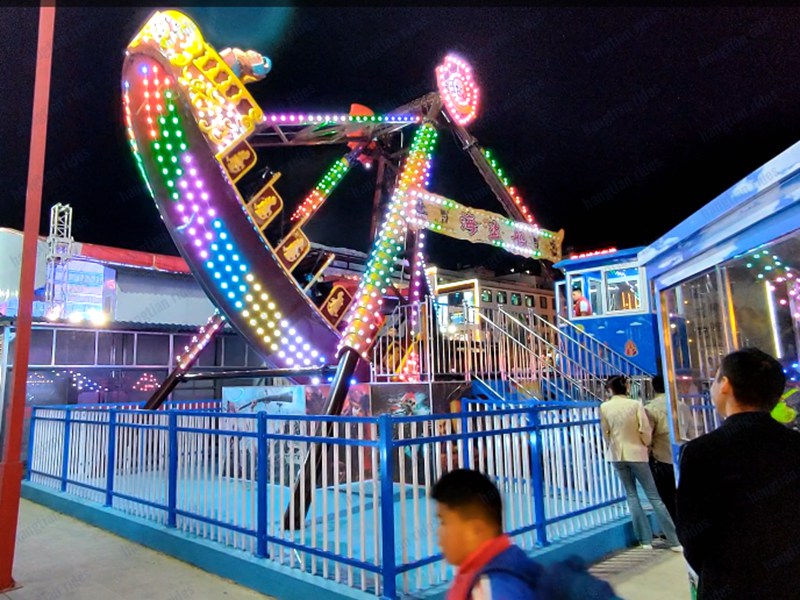

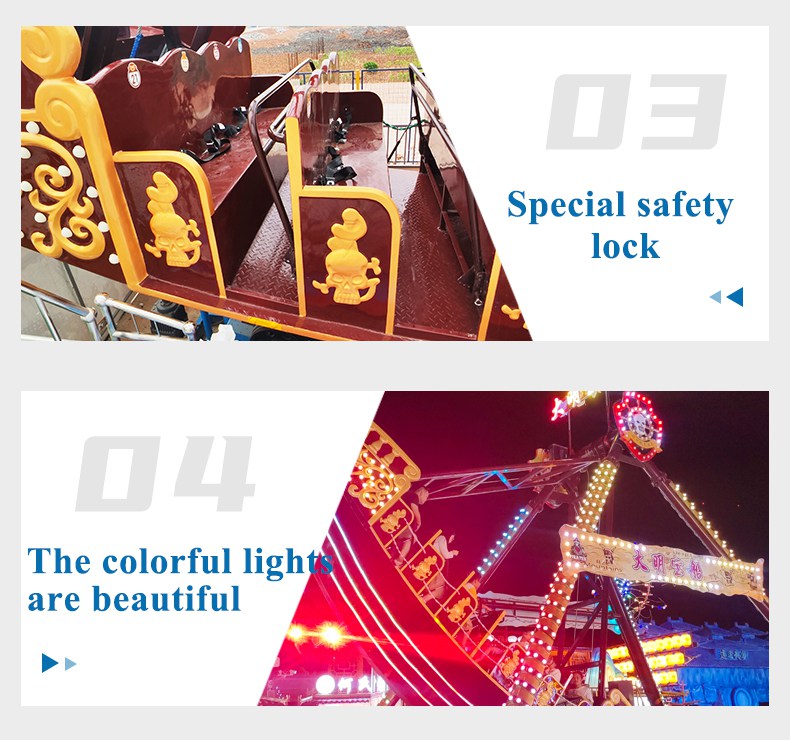

Full-Coverage Dreamy Lighting System: The whole equipment is equipped with high-brightness RGB full-color LED professional amusement lights. The support frame and arc track are wrapped with flowing light strips, and the ship body, ship edge and sail decorations are embedded with dense ambient spotlights. It supports multiple dynamic light effects such as steady bright, gradient color, rhythmic flashing and synchronous flowing. When the equipment swings at night, the lights change synchronously with the swing amplitude, forming a gorgeous dynamic light and shadow effect. The unique night lighting scene greatly enhances the night tour atmosphere of the venue, attracts a large number of night tourists, and improves the night operating income of the park.
-
Immersive Themed Sound System: Equipped with high-fidelity professional surround stereo speakers, built-in exclusive pirate adventure themed background music, wave simulation sound effects and adventure dynamic sound effects. The sound quality is clear and three-dimensional, and the volume is adjustable without noise distortion. The music rhythm is intelligently synchronized with the swing amplitude of the pirate ship. The gentle background music is matched with low-amplitude swing, and the passionate adventure music is matched with high-altitude swing, bringing tourists strong immersive adventure experience. It also supports customized multi-language broadcast prompts and exclusive music to meet the differentiated needs of global venues.
7. Quality Assurance
-
Standardized Qualification Production: The equipment is strictly produced and manufactured in accordance with national GB 8408-2018 amusement equipment safety standards and TSG 71-2023 special equipment safety specifications. The manufacturer holds complete special equipment production and installation qualifications. All products are equipped with official factory certificates, material inspection reports and type test reports, which can smoothly pass national government annual inspection and international third-party safety certification.
-

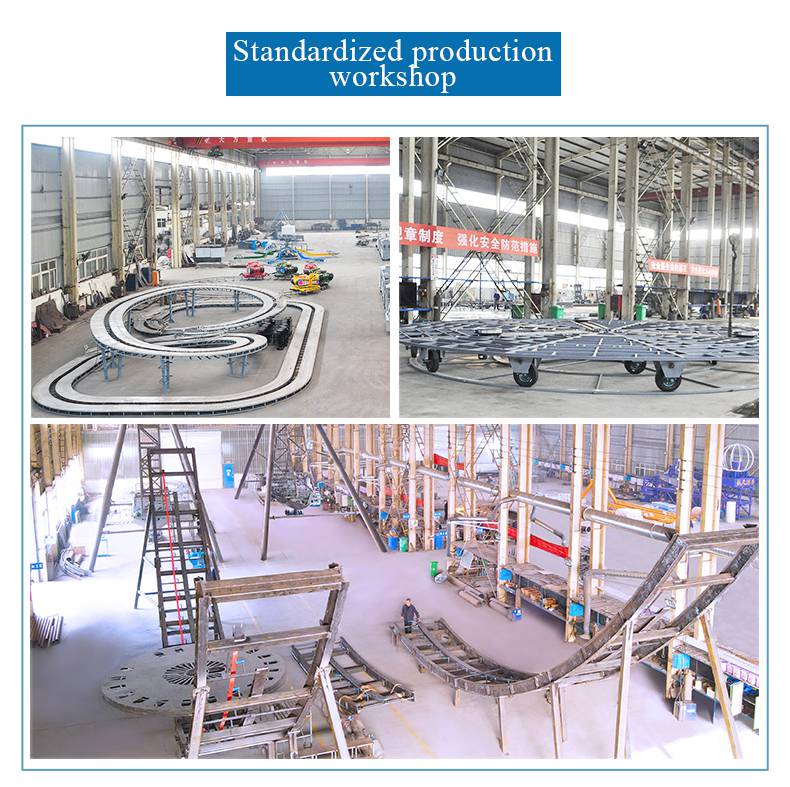

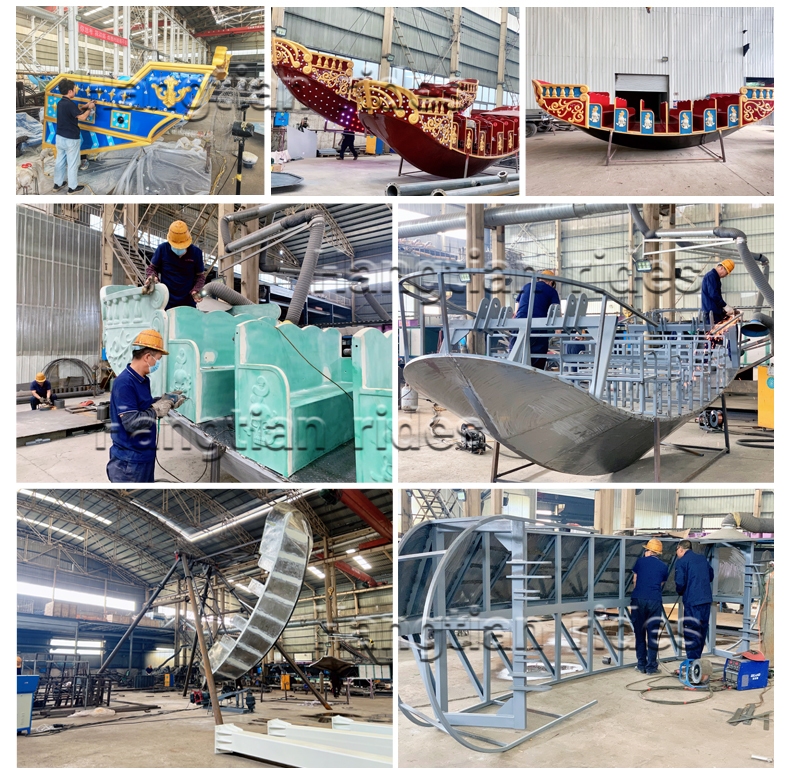

Strict Full-Process Quality Control: All steel raw materials, FRP materials, hydraulic parts and electrical accessories are strictly inspected before warehousing. Every process of welding, assembly, polishing, painting and electrical wiring is checked layer by layer. Before delivery, the equipment undergoes 72 hours of continuous no-load and full-load swing test, with repeated debugging of swing amplitude, hydraulic system, lighting and sound system to ensure zero failure and stable performance before delivery.
-
Multi-Layer Safety Redundancy Design: Adopt multiple safety protection mechanisms including hydraulic anti-fall protection, power-off automatic stop, overload protection, swing amplitude limit protection, emergency stop button and anti-collision buffer device. In case of sudden power failure, equipment failure or abnormal operation, the equipment can quickly and safely stop swinging and lock the position to ensure the absolute safety of passengers. All safety parts pass repeated fatigue tests to adapt to long-term high-frequency commercial operation.
8. After-Sales Guarantee
-
One-Stop Full-Cycle Service: Provide free pre-sales venue survey, site layout planning and foundation construction drawing guidance. Support global door-to-door installation, commissioning and professional operator training. Provide complete English and Chinese operation manuals, daily maintenance tutorials and installation teaching videos to ensure that customers can independently operate and maintain the equipment.
-
Long-Term Official Warranty: The whole machine enjoys 3-year free warranty service, and core components such as hydraulic system, motor, reducer and transmission structure are guaranteed for 5 years. During the warranty period, all non-human damaged parts are replaced free of charge, with zero maintenance cost for customers.
-
24-Hour Rapid Response Mechanism: Equipped with a professional overseas after-sales technical team, providing 24-hour online technical support. Simple equipment faults can be solved by remote guidance within 2 hours; for complex on-site faults, professional after-sales engineers can arrive at the site within 48 hours to repair, effectively reducing equipment downtime and operating losses.
-
Adequate Original Spare Parts Supply: The factory has a complete original spare parts warehouse with sufficient stock of wearing parts such as LED lights, speakers, safety belts, hydraulic accessories and connecting bolts. All spare parts can be delivered quickly within 48 hours, and a set of free wearing parts is provided when leaving the factory to ensure long-term stable operation of the equipment.
-
Value-Added Customized Operation Service: Provide free later-stage equipment appearance upgrading, theme repainting, lighting system upgrading and sound effect optimization services. Provide professional venue operation suggestions and passenger flow attraction strategies, helping customers improve equipment attractiveness, extend service life and maximize operating profits.
9. Product Summary
The 24 Set Pirate Ship Swing Ride is a cost-effective, high-popularity and ultra-stable medium-sized thrilling amusement equipment. With unique pirate adventure theme styling, realistic swinging experience, gorgeous night lighting effects and rigorous multi-layer safety design, it is deeply loved by young tourists and adventure lovers. It has wide venue adaptability, large passenger capacity, high operation efficiency and low later maintenance cost, with extremely high return on investment. It is an ideal core supporting project for major amusement parks, scenic spots and cultural tourism venues, and also a high-quality hot-selling product for global amusement equipment investment and procurement.
