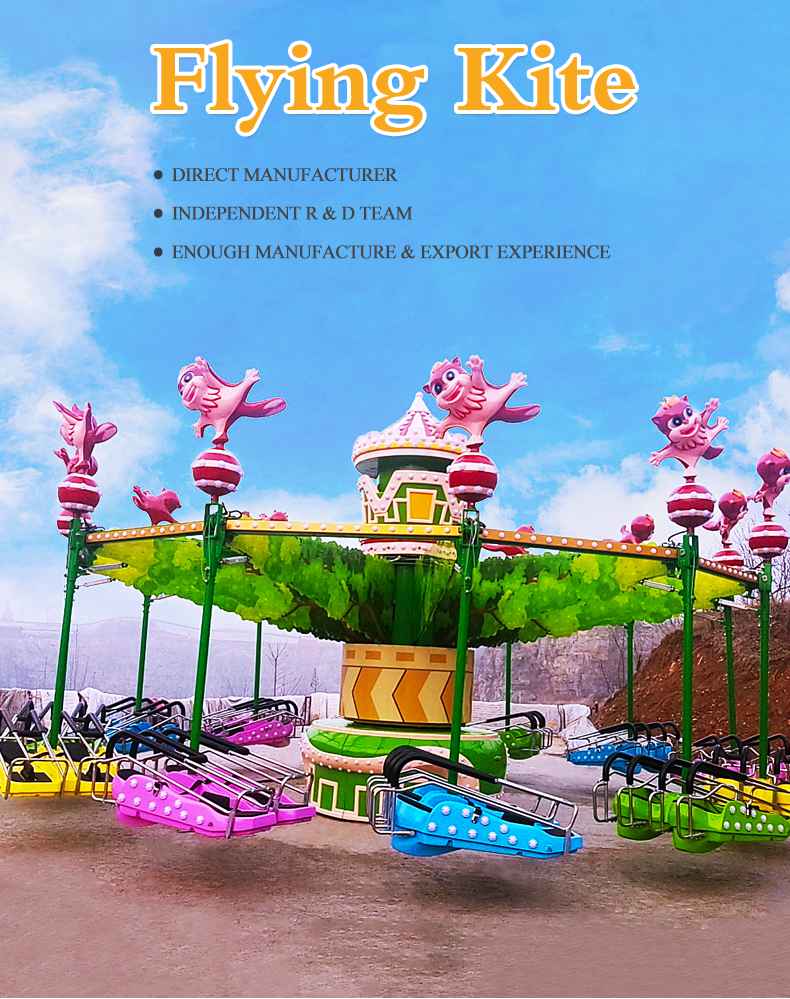

1. Product Brief Introduction

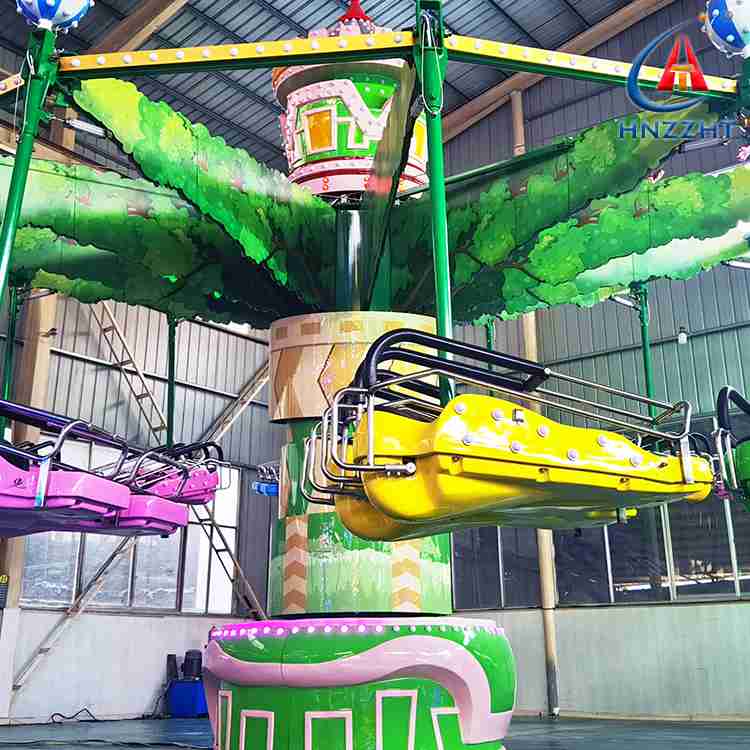

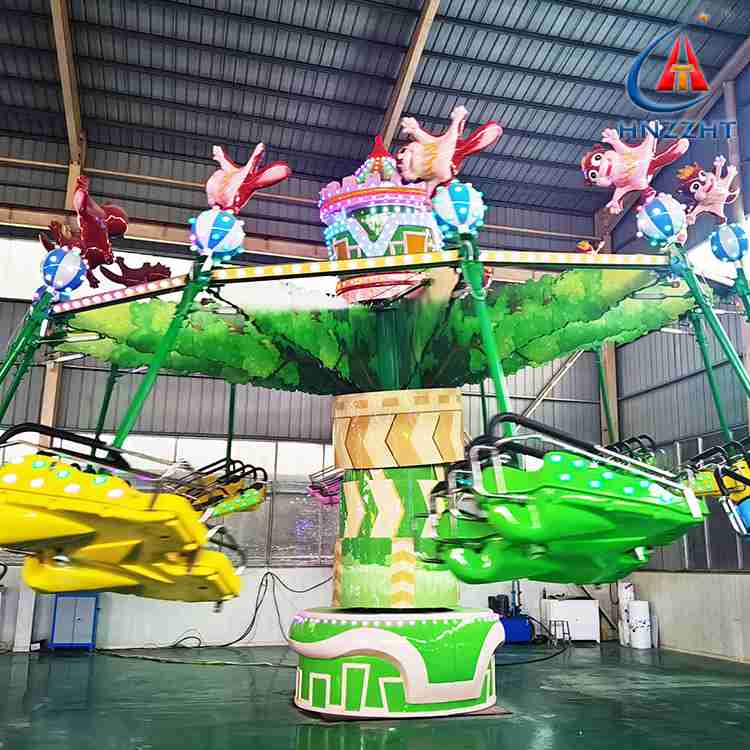

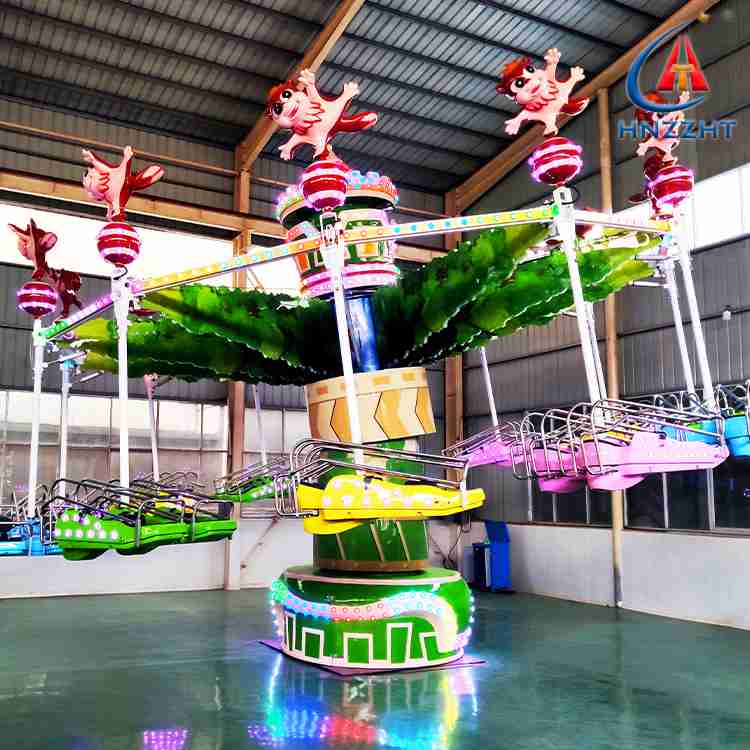

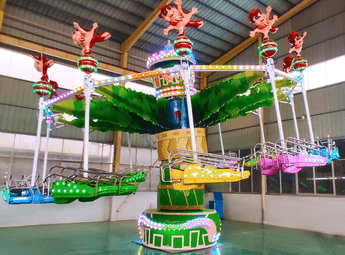

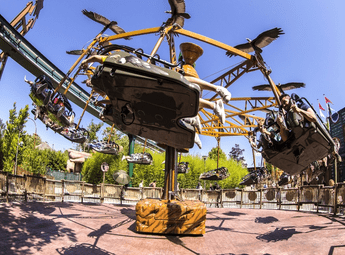

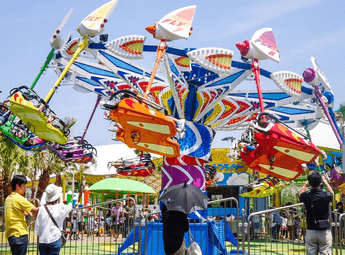

Kite Flying Amusement Ride, also known as Flying Kite Ride, is a popular moderate-thrill family interactive amusement equipment newly upgraded for modern amusement venues. Different from traditional sitting-type amusement rides, this unique equipment adopts a creative prone and sitting dual experience design, simulating the real scene of flying kites in the sky. It combines 360° horizontal rotation and regular up-and-down lifting movement, allowing tourists to experience the feeling of soaring, gliding and hovering in the air like free-flying kites. With soft and layered excitement, zero dizziness, high safety and strong interactivity, it is suitable for both parent-child families and young tourists. It features beautiful appearance, high night market popularity, stable operation and ultra-low failure rate, becoming a high-quality internet-famous project for amusement parks, scenic spots and commercial playgrounds, effectively boosting venue passenger flow and operating income.
Core Technical Parameters: The conventional Kite Flying ride covers an area of 15m×15m with a maximum operating height of 8 meters. It is equipped with 12 seats in standard configuration, supporting efficient passenger flow circulation. The rated power is 18kW with 380V industrial voltage. The equipment adopts frequency conversion adjustable speed control, with a stable rotating speed of 6-8rpm, and a single operation cycle of 120-180 seconds. It supports dual riding postures of sitting and prone lying, suitable for tourists with a height of 1.2m-1.9m. The whole machine has light structure, strong wind resistance and excellent outdoor adaptability, fully meeting long-term commercial operation standards.
2. Product Operation Principle
The Kite Flying amusement ride adopts mature frequency conversion transmission and mechanical linkage lifting structure, composed of central main column, radiation cantilevers, independent kite-style seats, driving motor, linkage lifting system and intelligent PLC control system. The operation logic is stable and mature with strong dynamic layering. After the equipment is started, the frequency conversion motor drives the central column to rotate 360° horizontally at a uniform and stable speed. Driven by the mechanical linkage device, each group of cantilevers drives the seats to perform regular up-and-down jumping and lifting movements during the rotating process.
Tourists can experience the simulated kite flying state of low-altitude gliding and high-altitude hovering with the ups and downs and rotation of the equipment. The whole operation process adopts slow start and slow stop design, with smooth acceleration and deceleration without jitter, impact or abnormal noise. The system supports adjustable operating speed and lifting amplitude, which can switch gentle parent-child mode and dynamic thrilling mode according to different passenger groups. After the operation cycle ends, all seats will automatically reset to the horizontal low position, facilitating safe and orderly boarding and alighting. The overall movement is soft and rhythmic, bringing a comfortable and immersive aerial flight experience.
3. Product Material Details
-
Main Steel Frame Structure: The central column, radiation cantilevers and fixed base are all made of high-strength Q235 national standard carbon steel. The thickened seamless steel pipe structure ensures strong bearing capacity, structural stability and torsion resistance. All welding parts adopt full welding process and are polished smoothly without burrs or welding pores. Key stress-bearing parts pass professional flaw detection to eliminate structural hidden dangers. The whole steel structure undergoes multi-layer anti-corrosion treatment including sandblasting rust removal, anti-rust primer and outdoor weather-resistant topcoat. It is anti-ultraviolet, rainproof and high-temperature resistant, with an outdoor service life of more than 15 years.
-
Seat & FRP Decorative Parts: All kite-shaped seats and decorative outer covers are made of high-density thickened FRP fiberglass material, which is environmentally friendly, non-toxic, impact-resistant, crack-resistant and non-deformable. The surface adopts automobile-grade high-temperature baking paint and hand-polishing fine technology, with bright and saturated color, strong three-dimensional sense and long-term color fastness without fading. The seat is designed with ergonomic radian, equipped with high-elastic waterproof shock-absorbing sponge cushion and anti-slip structure, adapting to both sitting and prone riding postures, ensuring comfortable and safe riding experience.
-
Safety Protection Accessories: Each independent seat is equipped with a thickened anti-skid safety armrest and high-strength elastic safety belt, forming a stable safety protection system. The safety belt is made of high-tensile polyester fiber material, with super wear resistance and anti-aging performance. All mechanical connection nodes adopt Grade 8.8 hot-dip galvanized anti-loosening bolts. The rotating and lifting joints are equipped with high-precision wear-resistant bearings, ensuring flexible and silent long-term high-frequency operation without loosening or failure.
-
Driving & Electrical System: The core motor and reducer adopt low-noise and high-efficiency brand accessories, with stable power output and low energy consumption. The electrical system reaches IP55 waterproof and dustproof grade, equipped with national standard flame-retardant leakage-proof cables and fully sealed waterproof electrical box, which can adapt to outdoor wind, rain, strong light and high-temperature harsh environments. The intelligent PLC control panel has simple operation and sensitive response, supporting long-term uninterrupted commercial cycle operation.
4. Suitable Application Scenarios
-
Medium and Large Amusement Theme Parks: As the core popular project in the parent-child amusement area, it matches carousels, self-control airplanes and mini pirate ships to enrich the park's family amusement system. Its unique kite flying experience and high appearance can attract a large number of parent-child and young tourists, improving the overall passenger stickiness and play richness of the venue.
-
Scenic Spots & Cultural Tourism Resorts: Suitable for scenic leisure squares, tourist service areas and resort amusement zones. The fresh kite-themed modeling fits the natural scenery of scenic spots, breaks the single sightseeing mode, adds dynamic entertainment items, extends tourists' staying time, and creates a unique scenic check-in landscape.
-
Urban Parks & Community Leisure Parks: With moderate excitement, safe movement, low noise and small floor area, it is very suitable for urban comprehensive parks and community children's playgrounds. It can meet the daily entertainment needs of children and teenagers, enrich urban public cultural and entertainment supporting facilities.
-
Commercial Plazas & Tourist Complexes: It can be placed in outdoor commercial squares, pedestrian streets and holiday activity venues. The gorgeous dynamic operation and night lighting effect can effectively gather on-site popularity, activate commercial atmosphere, drive pedestrian flow and secondary consumption, and enhance commercial operating benefits.
-
Global Overseas Amusement Markets: The equipment complies with international amusement safety standards and can provide CE, TUV and other international certification documents. It is widely exported to Europe, America, Southeast Asia, Middle East, Africa and other regions, and is favored by overseas family amusement parks, community playgrounds and carnival venues.
5. Design & Shape Features
The Kite Flying amusement ride adopts fresh and romantic kite art theme design, integrating natural vitality and dynamic amusement aesthetics. The overall structure is light and elegant, with evenly distributed radiation cantilevers, just like a group of colorful kites hovering in the air. Each independent seat is designed with simulated kite shape, with smooth and streamlined lines, vivid and cute modeling, full of childlike fun and natural breath. Different from the heavy mechanical style of traditional amusement equipment, it has a fresh and fashionable visual sense.
The product supports personalized full-theme customization. It can be matched with fresh candy color, ocean style, fairy tale cartoon style, traditional kite pattern style and other theme styles. The seat surface and equipment outer cover can be printed with exclusive park LOGO, creative kite patterns and cartoon elements. The whole equipment has high appearance and strong scene integration, which can quickly become the visual focus and internet-famous check-in spot of the amusement venue, greatly improving the overall aesthetic grade of the park.
6. Lighting & Sound System
-

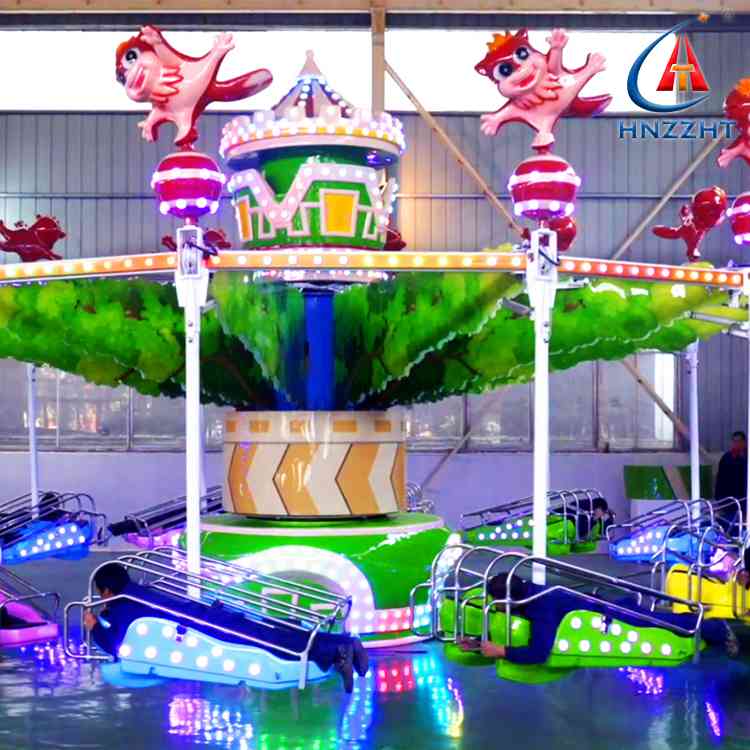

Full Set of Dreamy LED Lighting System: The whole machine is equipped with high-brightness RGB full-color professional amusement lights. The central main column and radiation cantilevers are wrapped with flowing colorful light strips, and each kite seat is embedded with independent high-density ambient spotlights. The lighting system supports multiple dynamic effects such as steady bright, gradient color conversion, rhythmic flashing and synchronous flowing. During night operation, the rotating and lifting equipment drives the lights to form gorgeous floating light and shadow tracks, just like colorful kites dancing in the night sky. The dreamy night scene greatly enhances the park's night tour atmosphere and attracts a large number of night tourists.
-
Immersive Background Sound System: Equipped with high-fidelity professional surround stereo speakers, built-in fresh, lively and romantic background music and simulated wind blowing sound effects. The music rhythm is soft and layered, intelligently synchronized with the equipment's rotating and lifting frequency. The volume is clear and adjustable without noise distortion. It also supports customized exclusive music and multi-language broadcast prompts, bringing tourists an immersive and relaxed kite flying entertainment experience.
7. Quality Assurance
-
Standardized Qualification Production: The equipment is strictly manufactured in accordance with national GB 8408-2018 amusement equipment safety standards and TSG 71-2023 special equipment safety specifications. The manufacturer holds complete special equipment production and installation qualifications. All products are equipped with official factory certificates, material inspection reports and type test reports, which can smoothly pass government annual inspection and international third-party safety certification.
-

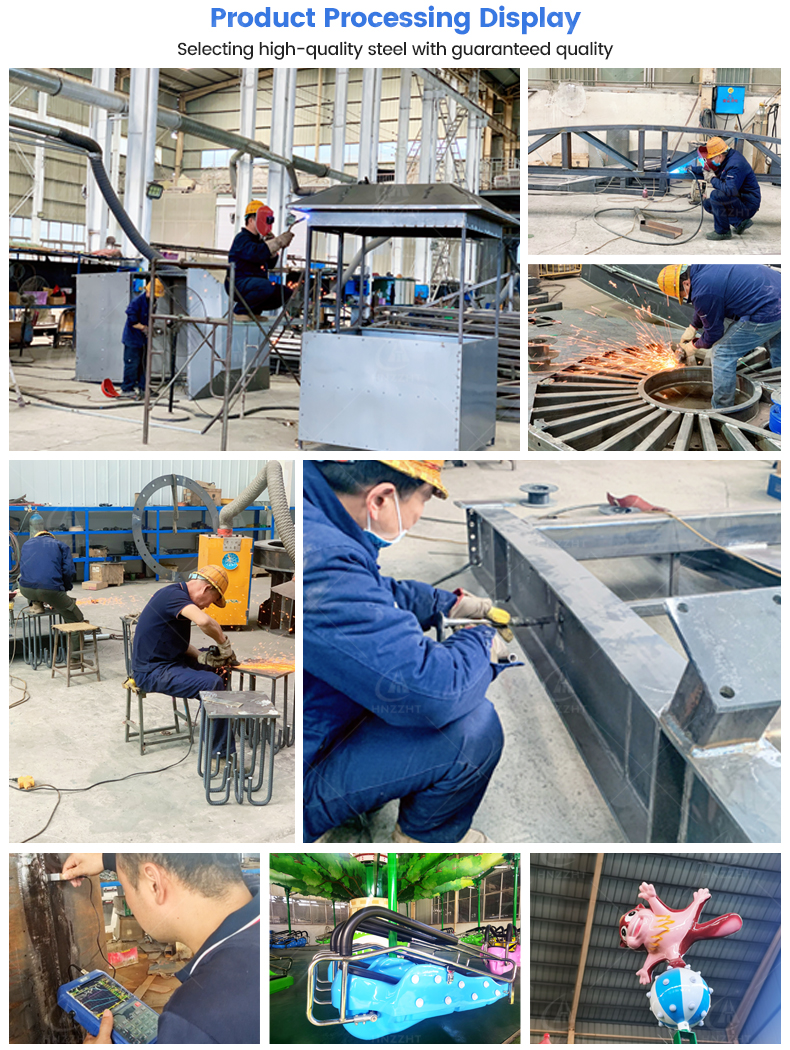

Full-Process Strict Quality Control: All steel raw materials, FRP materials, driving components and electrical accessories are strictly sampled and inspected before warehousing. Every process including welding, assembly, polishing, painting and electrical wiring is checked layer by layer. Before delivery, the equipment undergoes 72 hours of continuous no-load and full-load linkage operation test. All rotating, lifting, lighting and sound functions are fully debugged to ensure stable performance and zero hidden dangers before delivery.
-
Multi-Layer Safety Redundancy Design: Equipped with frequency conversion stable speed regulation system, overload protection, power-off automatic stop protection, limit protection and emergency stop button. In case of sudden power failure or equipment failure, the equipment can automatically lock and reset safely to avoid accidental risks. All safety parts pass repeated fatigue tests to adapt to long-term high-frequency commercial operation, ensuring absolute riding safety for tourists.
8. After-Sales Guarantee
-
One-Stop Full-Cycle Service: Provide free pre-sales venue survey, site layout planning and foundation construction drawing guidance. Support global door-to-door installation, commissioning and professional operator training. Provide complete English and Chinese operation manuals, daily maintenance tutorials and installation videos to ensure customers can independently operate and maintain the equipment.
-
Long-Term Official Warranty: The whole machine enjoys 3-year free warranty service, and core components such as motor, reducer and transmission linkage system are guaranteed for 5 years. During the warranty period, all non-human damaged parts are replaced free of charge with zero maintenance cost for customers.
-
24-Hour Rapid Response Mechanism: Professional overseas after-sales technical team provides 24-hour online technical support. Simple equipment faults can be solved by remote guidance within 2 hours; for complex on-site faults, professional engineers can arrive at the site within 48 hours for maintenance, effectively reducing equipment downtime and operating losses.
-
Adequate Original Spare Parts Supply: The factory has sufficient stock of original wearing parts including LED lights, speakers, safety belts, connecting bolts and electrical accessories. All spare parts can be delivered quickly within 48 hours, and a set of free wearing parts is provided when leaving the factory to ensure long-term stable operation of the equipment.
-
Value-Added Customized Service: Provide free later-stage equipment theme upgrading, color repainting, lighting system optimization and performance debugging. Provide professional venue operation and passenger flow attraction suggestions to help customers improve equipment popularity and maximize long-term operating profits.
9. Product Summary
Kite Flying Amusement Ride is a fresh, fashionable and high-cost-performance family amusement equipment. With its unique kite flying simulation experience, elegant dynamic operation, dreamy night lighting effects and rigorous multi-layer safety design, it is deeply loved by parent-child tourists and young players. The equipment has wide venue adaptability, simple installation and maintenance, low operating noise and high safety factor, with extremely high market competitiveness and return on investment. It is an ideal star project for new construction and upgrading of various amusement parks, scenic spots and commercial venues, and a high-quality hot-selling product for global amusement equipment investment and procurement.
