Rotation airplane amusement park rides for sale

1. Product Brief Introduction

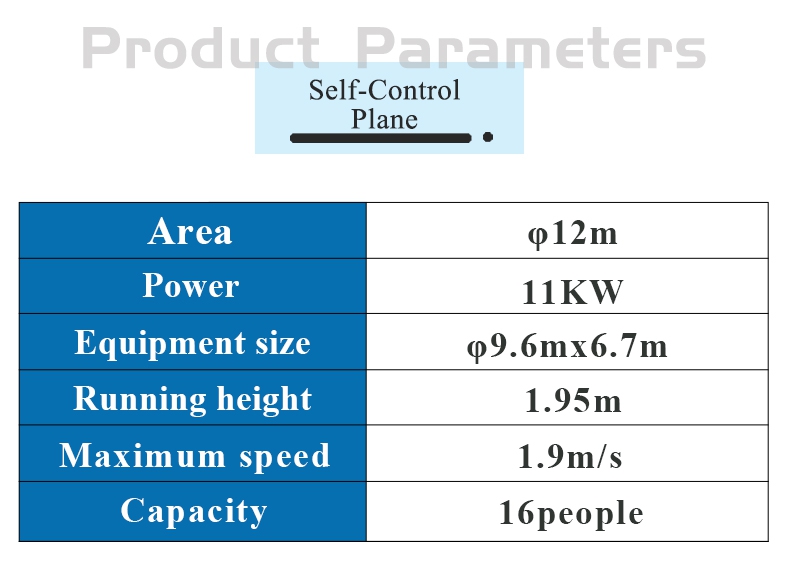

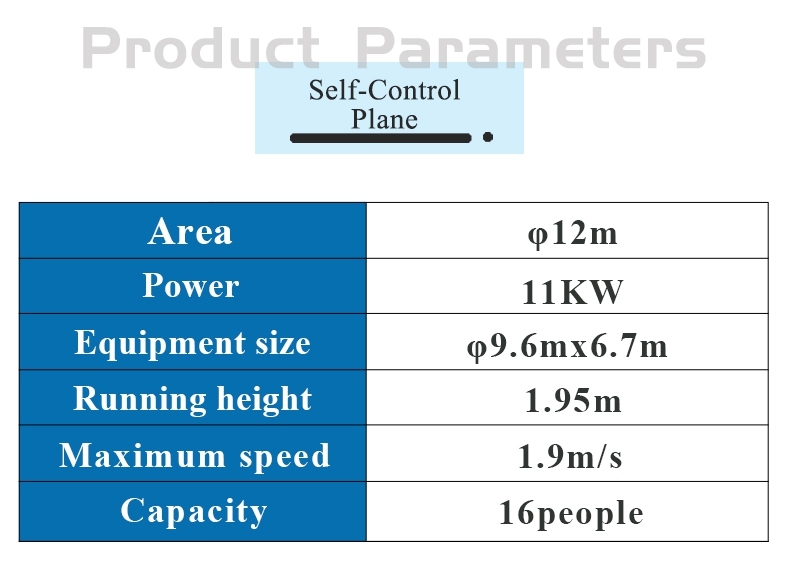

Basic Technical Parameters: The conventional equipment covers an area of 10m-14m in diameter with a total height of 7m-9m. It is equipped with 8/12/16 airplane cabins for optional selection, and each cabin can carry 2 passengers (one adult and one child). The rated power is 12kW-18kW with 380V voltage. The rotating speed is stable at 6-8rpm, and a single operation cycle is 120-180 seconds. The maximum lifting height of the airplane is about 3 meters, realizing flexible up and down jumping movement during rotation.

2. Product Operation Principle

The rotation airplane adopts mechanical transmission and pneumatic lifting integrated driving mode. The whole structure consists of central column, radiation cantilever, airplane cabins, driving motor, hydraulic system and intelligent control system. After starting the equipment, the main motor drives the central column to rotate horizontally at a constant speed, and all cantilevers drive the airplane cabins to rotate 360° synchronously. Each cabin is independently equipped with a manual control lever. Tourists can freely adjust the ascending and descending height of the airplane during the rotation process to realize simulated flight actions such as high-altitude hovering and rapid diving. The equipment is equipped with frequency conversion speed regulation function, which can realize slow start, stable operation and slow stop without jitter and impact, ensuring comfortable and smooth riding experience. In addition, the equipment is designed with automatic reset function. All cabins will automatically fall back to the horizontal position after the operation ends.

3. Product Material Details

• Main Steel Structure: The central upright column and all cantilevers are made of high-strength Q235 carbon steel. The main column adopts thickened seamless steel pipe with a wall thickness of more than 10mm, featuring strong compression resistance and stable bearing capacity. All welding parts are polished smoothly and inspected by ultrasonic flaw detection to eliminate welding cracks. The surface is treated with sandblasting, rust removal and multi-layer electrostatic spraying. The outdoor anti-corrosion grade reaches the industrial high standard, which can resist ultraviolet radiation, rain erosion and high temperature aging, and the service life can reach more than 15 years.
• Airplane Cabin Material: The airplane shell is made of high-density FRP fiberglass with a thickness of 5-6mm. The material is non-toxic, environmentally friendly, impact-resistant and crack-resistant. The surface adopts automobile-grade high-temperature baking paint, which is bright in color and never fades. The interior is equipped with high-elastic waterproof sponge cushion to fit the human body curve and improve riding comfort. Each cabin is equipped with thickened safety armrest and high-strength safety belt to ensure passenger safety during lifting and rotating.
• Transmission and Electrical Accessories: The core driving components adopt famous brand motors and reducers with low noise, low energy consumption and strong durability. All connecting bolts are Grade 8.8 hot-dip galvanized high-strength bolts to prevent loosening and rusting in long-term operation. The electrical system is designed with IP55 waterproof and dustproof grade, and all cables are flame-retardant and leakage-proof cables, which can adapt to outdoor rain, snow and high temperature environment without failure.

4. Suitable Application Scenarios

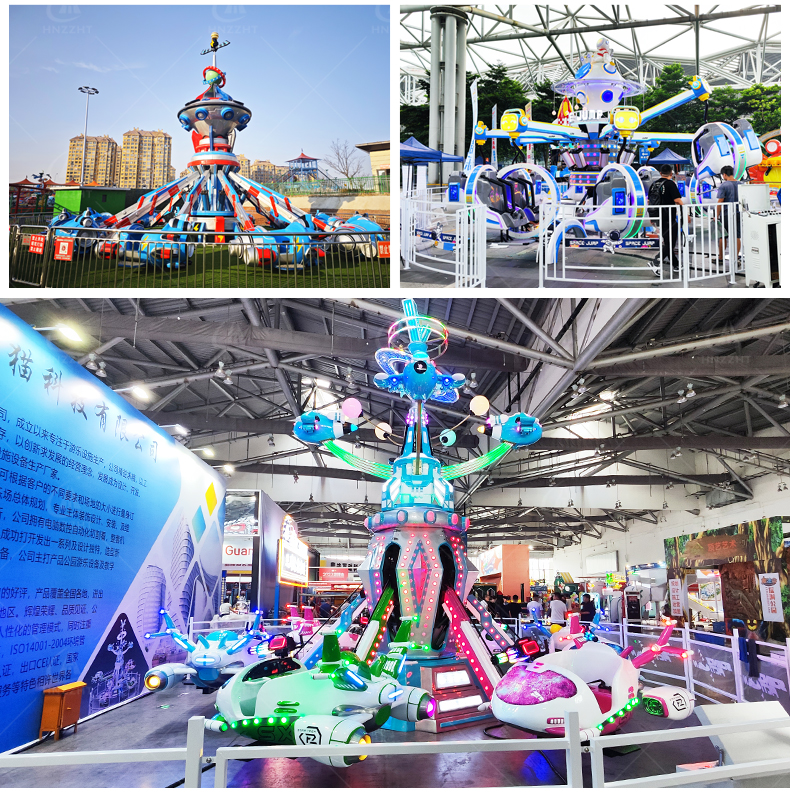

• Amusement & Theme Parks: As the core project of the parent-child amusement area, it matches carousels, flying chairs and bumper cars to form a complete family amusement zone, effectively attracting a large number of family passenger flow.
• Scenic Spots & Cultural Tourism Towns: Suitable for outdoor leisure squares and sightseeing platforms. Tourists can enjoy the panoramic scenery of the scenic spot during rotation, which improves the playability and appreciation of the scenic spot.
• Urban Parks & Tourist Resorts: The equipment has moderate excitement and high safety, which is very suitable for public leisure parks and holiday resorts to enrich entertainment projects.
• Commercial Plazas & Shopping Malls: Mini and medium-sized models can be placed in outdoor squares or indoor atriums to gather popularity for shopping malls and increase commercial consumption flow.
• Overseas Amusement Market: The equipment meets CE, TUV, ASTM and other international certification standards, and is suitable for export to Southeast Asia, Europe, America, Middle East and other regions, adapting to various international amusement venue standards.

5. Design & Shape

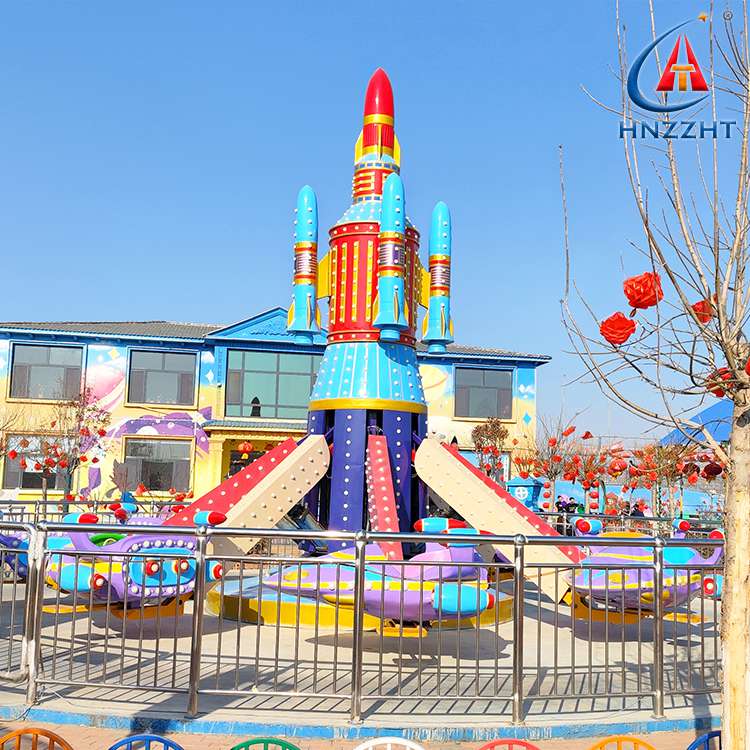

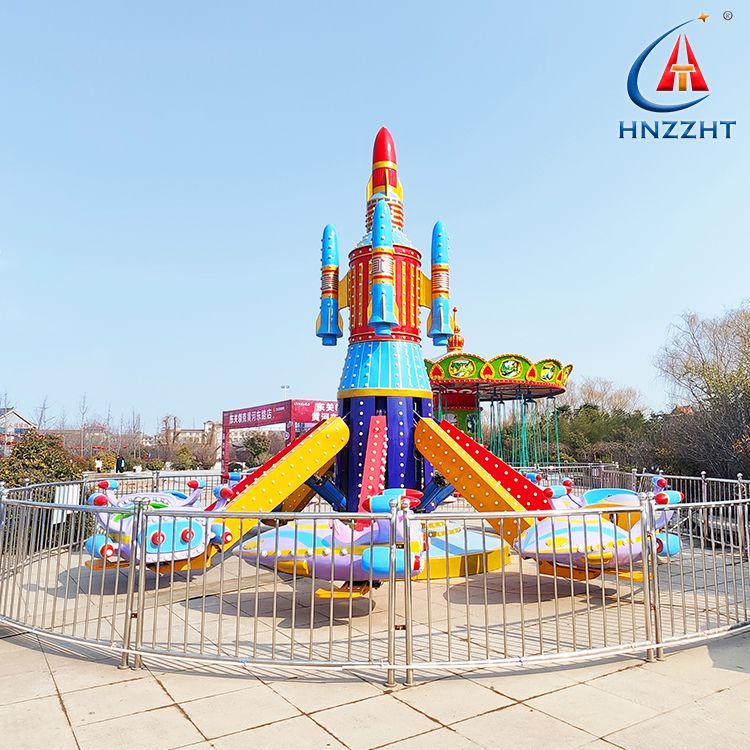

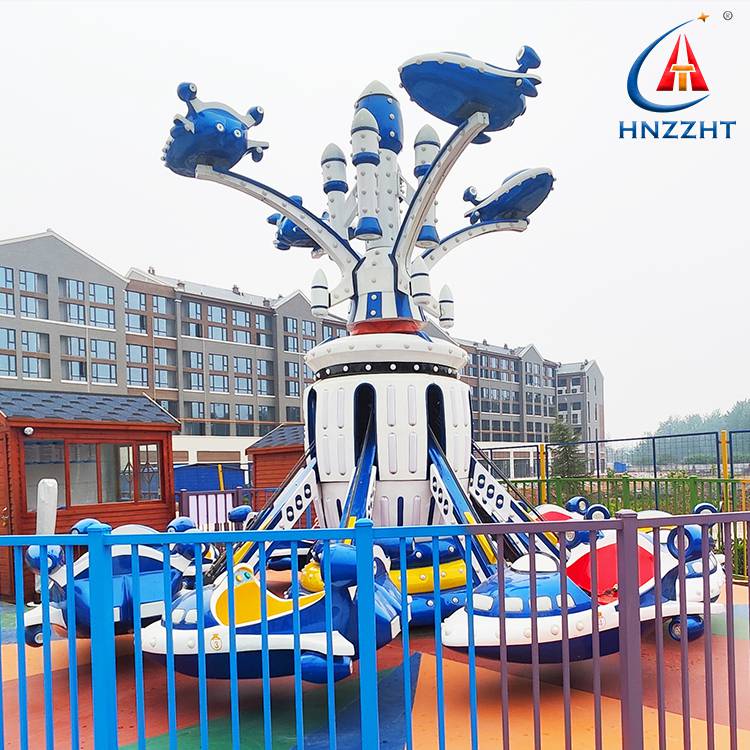

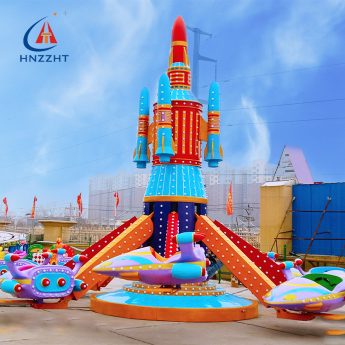

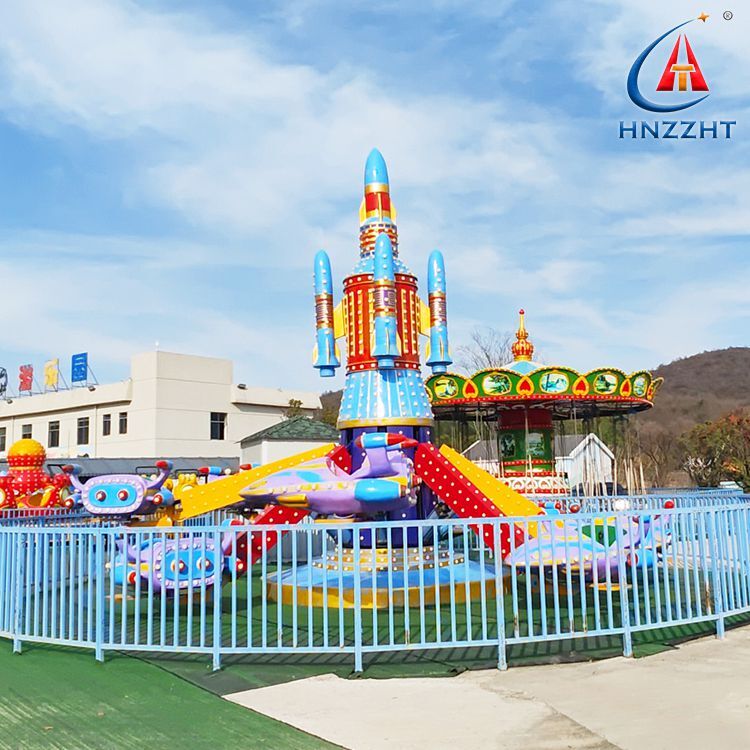

The rotation airplane adopts lively and vivid aviation cartoon design style. The central column is designed into rocket tower or space exploration modeling with smooth and atmospheric lines. The radiation cantilevers are evenly distributed, resembling a neat fleet taking off. Each independent cabin is shaped like a lovely mini airplane with streamlined wings and vivid appearance. The equipment adopts high-saturation bright color matching such as red, yellow, blue and white, which is highly recognizable in the venue. It supports personalized theme customization, including ocean style, space style, cartoon animation style and military camouflage style. The surface of the airplane can print LOGO, patterns and cartoon characters according to customer requirements. The overall appearance is fashionable, lovely and full of childlike fun, easy to become a beautiful photography check-in spot in the park.

6. Lighting & Sound System

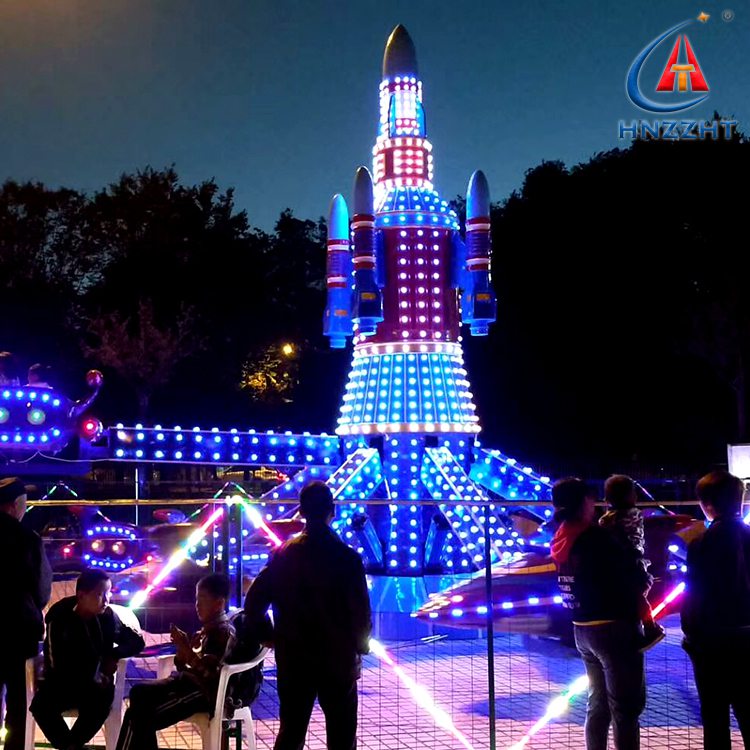

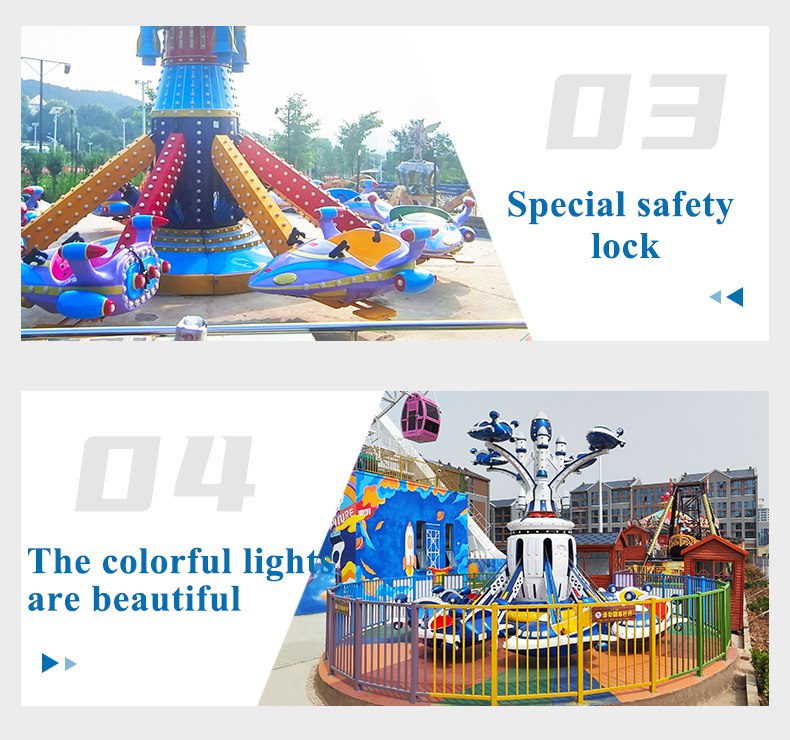

• Lighting System: The whole machine is equipped with high-brightness RGB full-color LED lights. The central tower is wrapped with colorful flowing light strips, and each airplane wing and tail is embedded with independent LED spotlights. The bottom of the cantilever is equipped with ambient decorative lights. The light mode supports monochrome steady bright, gradient color conversion, rhythmic flashing and dynamic flowing effects. At night, the rotating airplane forms a gorgeous luminous halo, greatly improving the night viewing effect and venue atmosphere.
• Sound System: Equipped with high-fidelity professional amusement speakers, built-in cheerful background music and simulated flight sound effects. The music rhythm is synchronized with the equipment rotation and lifting frequency. The volume is adjustable and soft without harsh noise. It also supports customized music and broadcast voice to create a vivid aviation flight atmosphere and enhance tourists' immersive entertainment experience.

7. Quality Assurance

• Standard Compliance: Strictly produced in accordance with national large-scale amusement equipment safety standards GB 8408-2018 and TSG 71-2023 safety specifications. The manufacturer holds special equipment production and installation licenses, and provides complete factory certificates, type test reports and material inspection reports.

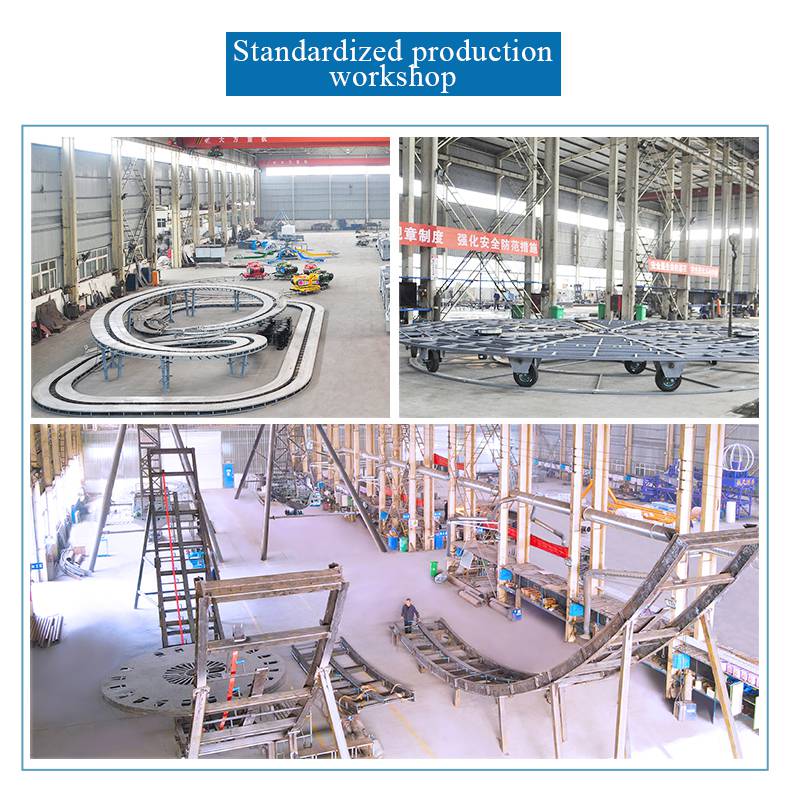

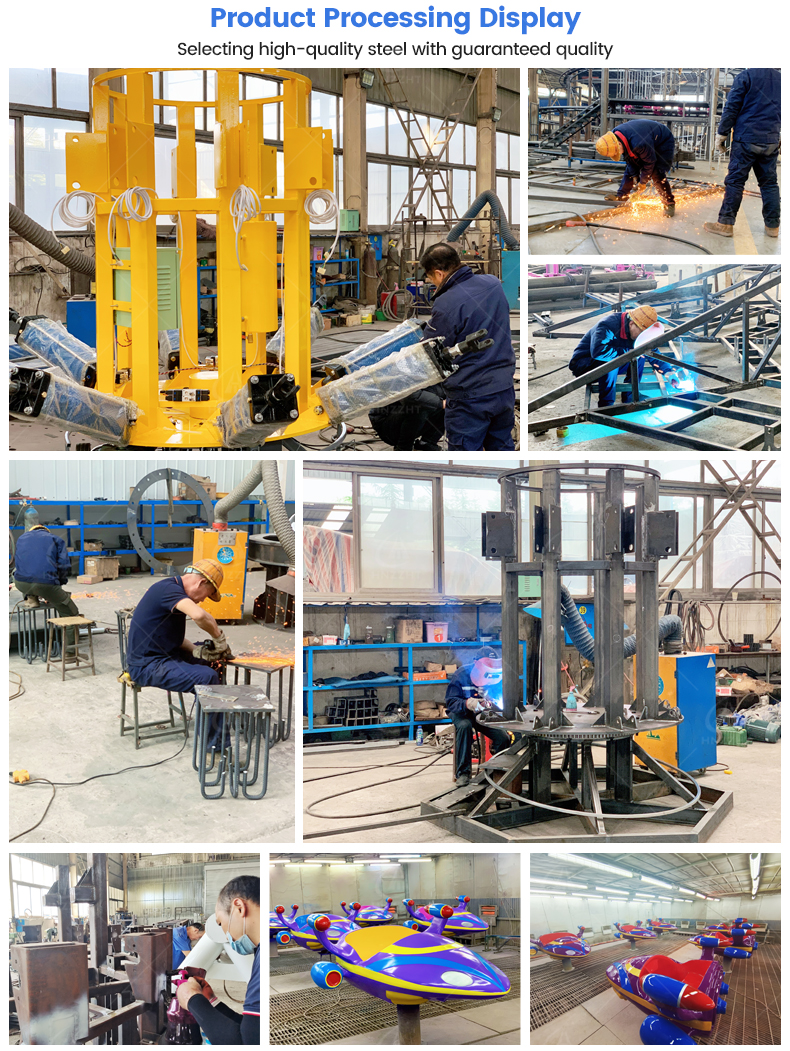

• Strict Production Inspection: All raw materials are strictly sampled and inspected before warehousing. Every welding, assembly and painting process is checked layer by layer. Before delivery, the equipment undergoes 72 hours of continuous no-load and load operation test to ensure stable performance without failure.
• Multi-Safety Protection Design: Adopt frequency conversion anti-collision system, emergency stop button, power-off automatic protection, overload protection and speed limit protection. The hydraulic system is equipped with anti-falling device to ensure that the cabin can be safely locked in case of sudden power failure or failure. All safety parts pass repeated fatigue tests to eliminate hidden dangers.

8. After-Sales Guarantee

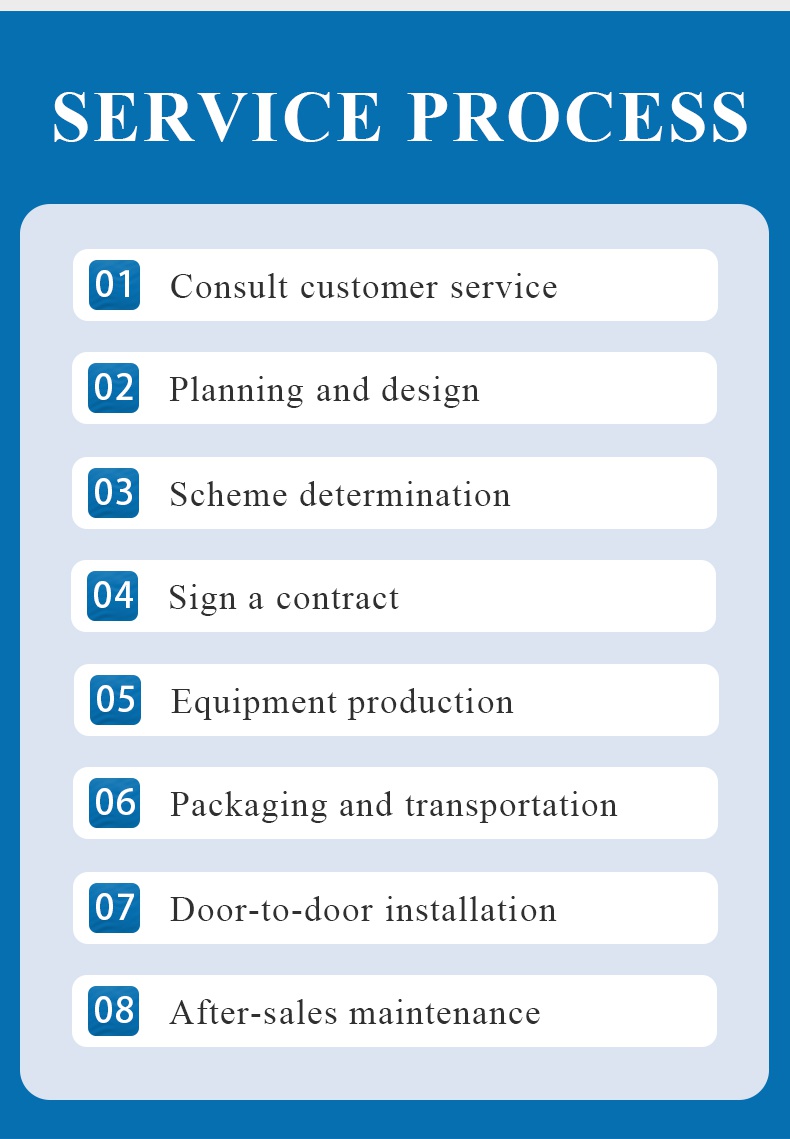

• Installation & Training: Provide free site measurement, foundation drawing guidance and global door-to-door installation and commissioning services. Professional engineers train operators on equipment operation, daily maintenance and emergency handling, and provide English and Chinese operation manuals and installation videos.
• Warranty Service: The whole machine enjoys 3-year warranty, and the core components such as motor, reducer and hydraulic system are guaranteed for 5 years. During the warranty period, non-human damage parts are replaced free of charge with no maintenance fee.
• Quick After-Sales Response: 24-hour online technical support service. Simple faults can be solved by remote guidance within 2 hours; on-site maintenance personnel can arrive at the site within 48 hours for complex faults to minimize equipment downtime.
• Spare Parts Supply: Complete original spare parts inventory, all wearing parts are in stock and can be delivered within 48 hours. A set of free wearing parts is given when leaving the factory to ensure long-term stable operation of the equipment.
• Value-Added Service: Provide free venue layout planning, theme color customization and later equipment upgrade services, and give professional operation suggestions to help customers improve attractiveness and operating income.

9. Product Summary
