1. Product Brief Introduction
88m Ferris Wheel is a landmark super-large sightseeing amusement equipment, the core iconic project for high-end theme parks, cultural tourism towns and urban scenic landmarks worldwide. Different from ordinary small sightseeing wheels, this 88-meter giant Ferris wheel adopts diamond truss spoke integral structure, featuring ultra-high overlooking vision, slow comfortable operation, zero thrilling jitter and full-age accessibility. It integrates urban sightseeing, romantic experience, night landmark landscape and internet-famous check-in functions. Tourists can overlook panoramic city scenery, park landscape and natural scenery at the 88-meter highest altitude. With ultra-high venue recognition, strong passenger gathering capability and long-term commercial value, it is a must-build landmark project for upgrading high-end cultural tourism projects, greatly improving venue grade, brand influence and comprehensive tourist attraction.
Core Technical Parameters: The total vertical height reaches 88m, effective rotating diameter 81m, occupied site area 50m×50m. Equipped with 49 enclosed panoramic passenger cabins, total maximum passenger capacity 294 people per cycle. Rated total operating power 40kW, industrial 380V/50Hz voltage. Constant stable operating speed 0.21m/s, one full rotating cycle 22 minutes. Wind resistance level up to Grade 12 typhoon resistance, suitable for long-term coastal and inland outdoor operation. Suitable for visitors above 6 years old, accessible for adults, children, elderly and pregnant tourists, realizing full-age group sightseeing entertainment.
2. Product Operation Principle
The 88m Ferris Wheel adopts mature dual-motor backup traction drive + intelligent PLC linkage control system, composed of eight-column reinforced support frame, main wheel hub, double-row diamond spoke truss, enclosed panoramic cabins, traction drive unit, wind speed monitoring system and intelligent control cabinet. It adopts constant-speed unidirectional circular rotating operation mode, no reversing, no acceleration and deceleration jitter, fully guaranteeing riding stability. The whole set adopts main and standby dual drive design, avoiding stop failure caused by single motor damage.
During operation, the traction wheel drives the main wheel body to rotate at constant low speed steadily. The boarding position keeps horizontal cabin static state for convenient passenger boarding and alighting without height lifting. Built-in linkage wind induction system will automatically monitor real-time wind speed: when wind speed exceeds 15m/s, the system will automatically alarm, slow down and stop safely and lock the wheel body. The whole operation supports manual mode and automatic timing mode switching, with emergency automatic reset function. The running process is ultra-smooth, noise-free and vibration-free, bringing relaxed, romantic and panoramic sightseeing experience without dizziness or discomfort. After daily operation, the wheel body automatically returns to fixed boarding position to finish daily cycle operation.
3. Product Material Details
-
Main Load-Bearing Framework Material: The eight support columns, main wheel hub and double-row diamond spokes all adopt national standard high-strength Q345B alloy structural steel, with high compression resistance, torsion resistance and seismic performance. All main stress nodes adopt robotic full penetration welding, passing UT ultrasonic flaw detection and MT magnetic particle inspection double testing to eliminate welding defects. The whole steel structure adopts hot-dip galvanizing anti-rust base + marine weather-resistant outdoor topcoat double anti-corrosion treatment, anti-ultraviolet, salt spray and rain erosion, outdoor design service life up to 20 years, stable for coastal high-salt humid environment operation.
-

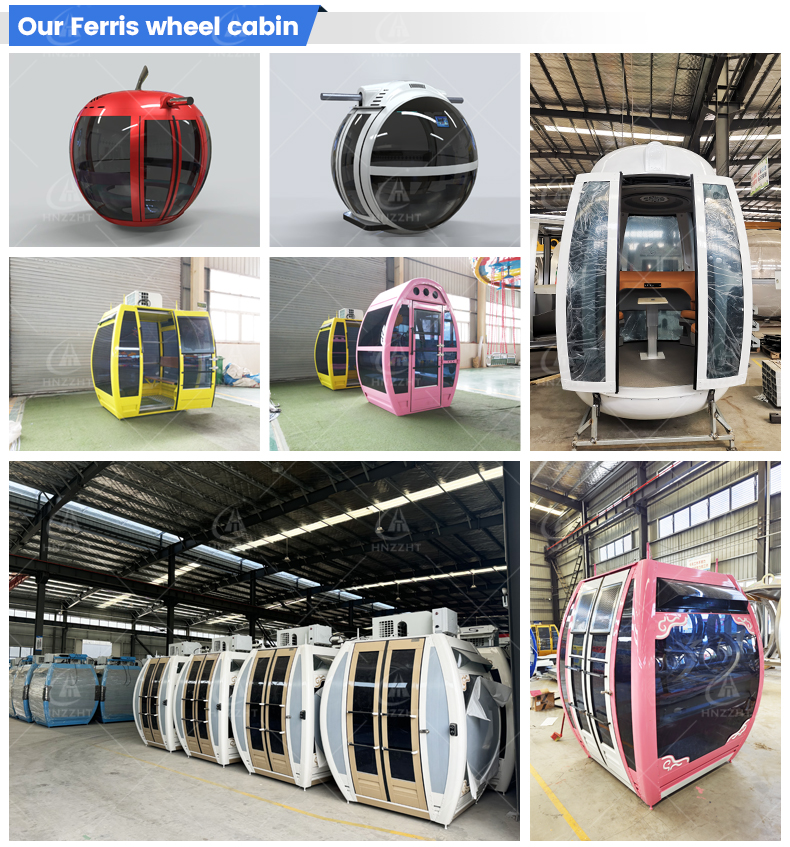

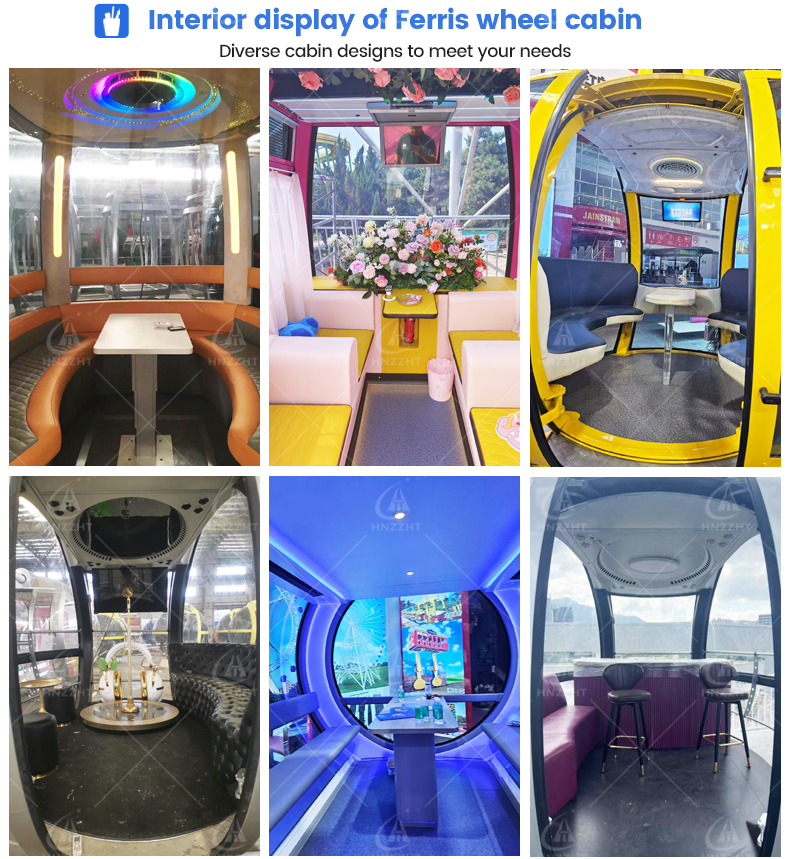

Enclosed Panoramic Cabin Material: Standard closed panoramic sightseeing cabins adopt aviation aluminum alloy frame + explosion-proof tempered hollow glass. The cabin glass is pressure-resistant, anti-fall and high-transparent, realizing 270° full landscape viewing. Cabin interior uses fire-proof environmental decorative board, thickened shock-absorbing seats, independent constant-temperature air conditioning, built-in monitoring intercom, emergency oxygen supply and onboard entertainment screen. Outer cabin shell adopts thickened FRP fiberglass with automotive high-temperature baking paint, color fast and crack-resistant. Every cabin is equipped with independent emergency escape door for double safety guarantee.
-
Connection & Safety Hardware: All wheel body connecting nodes adopt Grade 10.9 hot-dip galvanized high-strength anti-loosening bolts, with anti-fatigue and anti-loose locking gaskets. Rotating hub parts adopt imported high-precision sealed wear-resistant bearings, maintenance-free for long-term operation. Each cabin is equipped with mechanical anti-fall hook, limit anti-sway device to avoid cabin shaking during rotation. All outer metal edges are rounded polished to prevent collision injury.
-
Electrical & Drive System Material: Main and standby dual low-noise traction motors, reducer adopt industrial heavy-duty brand parts, stable power output, low energy consumption. The whole electrical system reaches IP65 high waterproof and dustproof grade, all cables adopt flame-retardant leakage-proof national standard cables. Equipped with independent lightning protection grounding system, wind speed sensor, lightning induced alarm module, adapting extreme outdoor weather conditions.
4. Suitable Application Scenarios
-
High-End Large Theme Amusement Parks: As the core landmark signature project of the whole park, matched with roller coaster, big pendulum, speed windmill and other thrilling rides, building a complete amusement business cluster. It improves park brand level, becomes park core business card, boosts ticket sales and tourist revisit rate.
-
Urban Cultural Tourism Scenic Spots & Resort Towns: Suitable for city landmark scenic areas, lakeside resorts, coastal tourism zones and characteristic cultural towns. It creates high-altitude sightseeing business, enriches scenic playing forms, extends tourist stay time, and becomes urban iconic internet-famous night view spot.
-
Urban Central Parks & City Leisure Landmarks: Built as urban public sightseeing landscape, supporting urban leisure tourism construction, serving citizen daily leisure sightseeing, festival romantic activities, city evening viewing, upgrading urban public landscape grade.
-
Large Commercial Tourism Complex & Lakeside Commercial Blocks: Placed in outdoor commercial waterfront squares, supporting commercial night economy development, gathering long-term passenger flow, driving surrounding catering, leisure and secondary consumption, maximizing land commercial value.
-
Overseas High-End Tourism Projects: Fully compliant with EU CE, TUV international amusement safety standards, complete export qualification documents. Widely exported to Europe, Middle East, Southeast Asia, Africa and other regions, applicable for national scenic projects, urban landmark construction and high-end amusement park supporting projects.
5. Design & Shape Features
The 88m Ferris Wheel adopts modern minimalist high-end landmark design, integral symmetrical diamond truss modeling, neat layered spokes, grand and atmospheric overall structure, strong architectural artistic sense. The eight supporting legs adopt curved streamline modeling, stable and elegant, perfectly integrated with urban scenery, lake view and park landscape. The whole wheel body has balanced proportion, super high aerial recognition, elegant rotating posture, different from bulky mechanical sense of ordinary amusement equipment, with high architectural ornamental value.
Full personalized customized support available: customizable whole wheel body color matching, gradient color, metallic high-grade paint; customizable cabin exclusive color, park LOGO, pattern printing; support festival theme, romantic starry sky, carnival, city IP exclusive styling customization. The enclosed panoramic cabin has streamlined appearance, compact and elegant shape, uniform arrangement, strong photographic check-in attribute, easy to become top popular internet-famous landmark of the whole city.
6. Lighting & Sound System
-
Full Intelligent Linked Night Lighting System: Equipped with full-set high-brightness RGB full-color professional landmark LED lights, covering wheel rim, diamond spokes, support columns and every independent cabin. Adopt embedded waterproof lamp belt + spotlight combined layout, no exposed wiring, durable outdoor use. Support multiple intelligent lighting modes: steady romantic lighting, gradient flowing light, rhythm flash, custom festival dynamic effect, linkage music light show. At night, the 88m giant wheel presents panoramic 360° gorgeous light effect, forming iconic urban night scene, greatly boosting venue night passenger flow and night operating income.
-
Independent Cabin Immersive Sound System: Equipped with public area high-fidelity surround broadcast system + independent cabin private audio system. Public area plays relaxing background music, safety multi-language broadcast and weather broadcast; each cabin built-in romantic light music, sightseeing exclusive background audio. Volume adjustable, no noise distortion, support customized scenic introduction audio, festival exclusive audio, creating warm, romantic and immersive high-altitude sightseeing atmosphere.
7. Quality Assurance
-
Standard Qualified Production & Certification: Strictly produced per GB 8408-2018 amusement equipment safety standard and TSG 71-2023 special equipment code. Manufacturer owns complete large special equipment design, production, installation qualification. Complete factory inspection report, material test report, overall type test report, lightning protection test report, wind resistance test report, smoothly passing national annual inspection and international third-party certification.
-
Whole Process Strict Quality Inspection: All steel, aluminum alloy, electrical parts sampled inspected before warehousing. Welding, galvanizing, assembly, lighting debugging, cabin pressure test implemented layer-by-layer inspection. Before delivery and on-site completion, implement 120 hours continuous full-load rotating test, wind simulation test, emergency stop test, all functions fully debugged to eliminate operation hidden dangers.
-
Multi-Redundant Full Safety Protection: Equipped with dual drive backup system, power-off automatic brake locking system, 12-grade wind resistance early warning system, lightning protection system, cabin anti-fall hook, cabin anti-sway limit, overload protection, emergency intercom system. Every cabin equipped independent emergency power supply, emergency escape window, first-aid kit. Under extreme weather, sudden power failure and mechanical abnormality, the equipment can lock safely and manually lower cabins for rescue, realizing full-dimensional riding safety protection.
8. After-Sales Guarantee
-
Full-Cycle One-Stop Engineering Service: Free pre-sale site survey, foundation engineering design, geological assessment, overall venue layout planning. Provide global door-to-door professional assembly, welding construction, overall debugging, staff operation and rescue training. Deliver bilingual operation manual, daily maintenance manual, emergency disposal tutorial, ensuring independent operation and management.
-
Long-Term Hierarchical Official Warranty: Whole machine 3-year free comprehensive warranty; core structure including steel frame, hub, spoke truss 10-year quality warranty; drive motor, PLC control system, lighting system 5-year free warranty. Non-human damage parts free replacement and free maintenance within warranty period.
-
24h Global Rapid After-Sales Response: Dedicated overseas engineering after-sales team 24h online standby. Simple faults remote guidance solved within 2 hours; large structure, electrical failure, arrange professional engineers arrive site within 72h worldwide, minimize equipment downtime and operating loss.
-
Adequate Original Spare Parts Reserve: Factory stock sufficient original wearing parts including LED light components, control modules, sealing bearings, cabin accessories, safety locks. Spare parts global fast delivery within 48h, free set of common wearing parts delivered together with equipment.
-
Permanent Value-Added Operation Service: Free later lighting program upgrade, theme color repainting, cabin interior renovation, seasonal light show customization. Provide landmark operation plan, festival activity planning, passenger flow drainage scheme, help operators improve brand popularity and long-term operating profit.
9. Product Summary
88m Ferris Wheel is a high-investment, high-value, long-return super-large landmark sightseeing amusement equipment. With grand iconic modeling, 88m panoramic overlooking vision, 12-grade typhoon resistance stable structure, full-age safe riding experience and shocking intelligent night light show, it is irreplaceable core landmark for cultural tourism and urban scenic projects. Featuring ultra-long service life, low daily maintenance cost, strong weather adaptability and ultra-high internet communication ability, it brings stable ticket income and venue value appreciation for operators. It is the preferred landmark supporting project for global high-end scenic spots, theme parks and urban tourism complexes.
