Quick answer: the turntable diameter depends on the model
There is no single diameter for every Tagada disco ride. Commercial product listings commonly show turntables around 4.5 to 6 meters, while larger or specially configured models can differ. Confirm the exact disc diameter on the drawing for the model you plan to buy.
Turntable diameter is a model specification

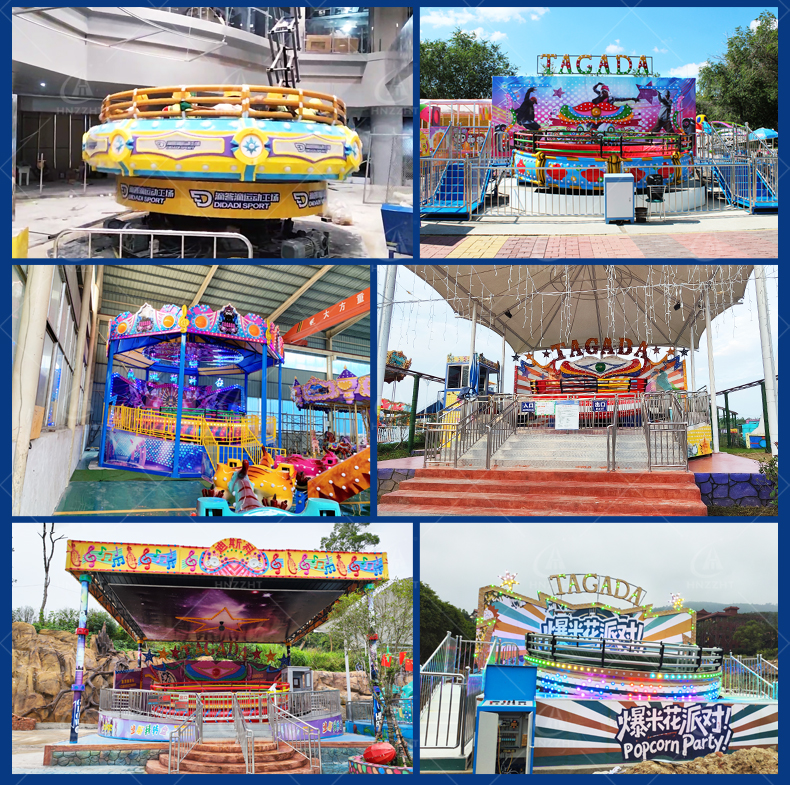

The rotating disc is the central platform where riders sit around the perimeter. Its diameter affects the ride’s seating layout, visual scale, and the space needed for access and maintenance. A useful starting point for a Tagada Disco Ride Turntable Diameter is about 4.5 to 6 meters for many commercial configurations. Treat this as a planning range, not a universal standard: seat count, platform design, and the manufacturer’s engineering choices can change the measurement.
Product pages for different models list examples such as a 4.5-meter disc or a 5-meter turntable, and some ranges extend to 6 meters or more. Always compare the same measurement: the circular turntable itself is different from the overall operating envelope.
Separate disc diameter from footprint

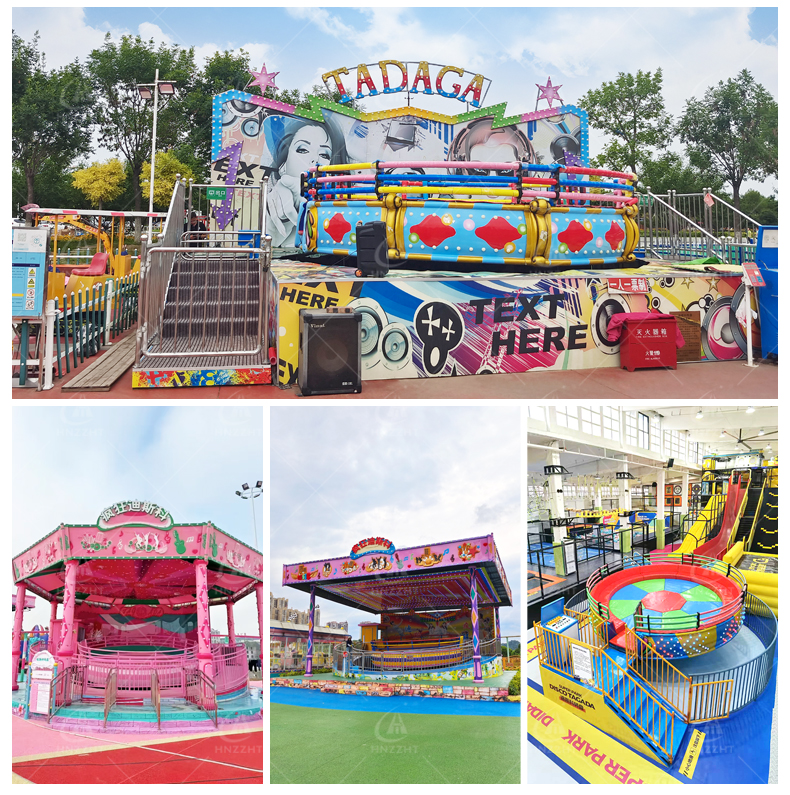

The ride needs more room than the disc alone. The installation footprint may include the support frame, stairs or boarding access, control equipment, barriers, and clearance around moving parts. A Tagada Disco Ride Dimensions checklist should therefore record at least the disc diameter, overall length and width, height, required safety clearance, and service access.
For an amusement park layout, use the manufacturer’s general arrangement drawing rather than multiplying the disc size by an assumed clearance. Site rules, local codes, passenger flow, and the selected operating mode can all affect the final space plan.
Disc diameter: the width of the rotating passenger platform.
Overall footprint: the full equipment length and width, including access structures.
Operating clearance: the extra space required around the ride for safe use and maintenance.
Why the diameter varies
Manufacturers configure rides for different capacities and transport or installation requirements. A larger disc can provide more perimeter for seating, but it also changes the structure, drive system, loading arrangement, and transport dimensions. Compact models may suit indoor venues or smaller fairs; larger versions can create a stronger visual presence where the site has room.
When comparing a Tagada Disco Ride for Sale, ask whether the quoted diameter refers to the passenger platform, an outer decorative edge, or the full equipment envelope. Request the drawing and a written specification so quotations can be compared on the same basis.
Measurements to confirm before ordering
Turntable or disc diameter, measured across the usable rotating platform.
Overall footprint, minimum operating clearance, ride height, and boarding position.
Passenger capacity, seat arrangement, power, foundation, shipping, and maintenance access for the quoted model.
Ask the Tagada Ride Manufacturer to mark the relevant dimensions directly on the approved drawing. This prevents confusion between the disc, the chassis, and the full operating area.
Plan the site around the complete ride

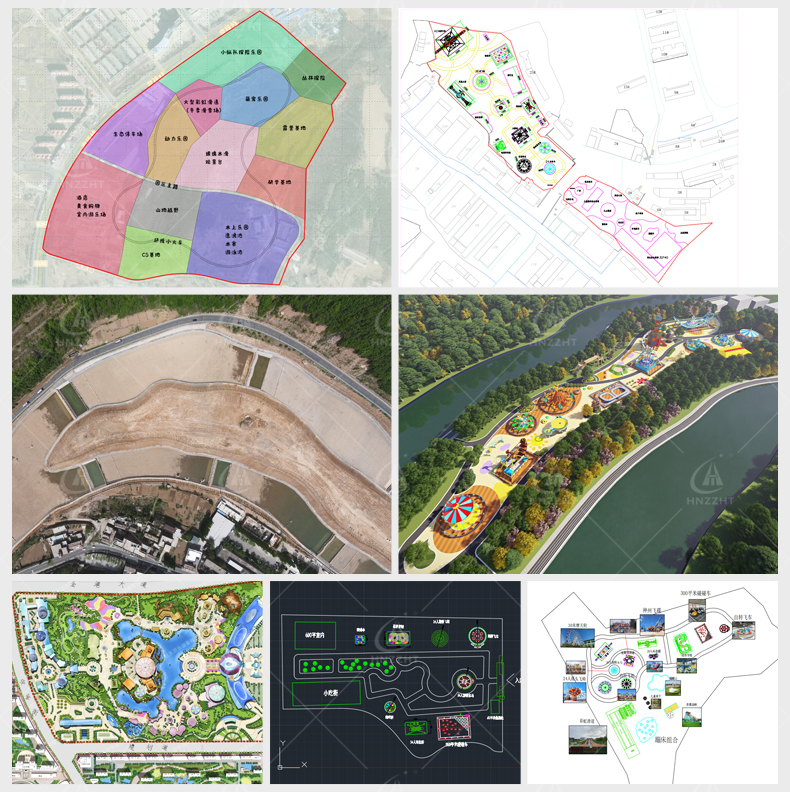

After confirming the model, place its footprint on the site plan with the required clearances and passenger queue. Check nearby structures, overhead obstructions, drainage, power routing, and access for delivery vehicles. The final layout should be reviewed against the manufacturer’s installation documents and the regulations that apply at the destination.
A clear specification also helps the park compare suppliers fairly. Record the diameter and footprint separately, then verify that the offered capacity, electrical data, and installation scope match the selected configuration.
Get the exact dimension for your project
As a practical estimate, many Tagada disco ride turntables fall near 4.5 to 6 meters in diameter, but the exact answer depends on the model. Do not finalize a foundation or attraction layout from a catalog range alone. Request the current technical drawing, confirm the measurement in writing, and review the complete operating footprint before placing an order.
For a suitable Disco Tagada Ride configuration, share your target capacity, available site area, and installation location when requesting a quotation. Those details help the supplier identify a model and provide dimensions that fit your project.
