First, let’s start with a core conclusion: All three pendulum ride variants rely on foundational electrical systems, but each type has specialized components tailored to its unique motion mechanics—swing-only, spinning + swing, or classic high-arc swing.
| Foundational Electrical Component | Core Role |
| Main Drive Motors | Deliver primary power to initiate and sustain the ride’s core motion (swing or spin) |
| Programmable Logic Controller (PLC) | Acts as the ride’s central “brain,” coordinating motion, safety protocols, and user input |
| Safety Interlock Sensors | Verify secure restraints, closed ride gates, and proper starting position before operation |
| Power Distribution Units (PDUs) | Regulate and distribute electrical power to all components to prevent overloads |
| Emergency Stop Systems | Instantly cut power and engage braking mechanisms if safety thresholds are exceeded |
⚙️ Specialized Components for Pendulum Swing Rides (Swing-Only Motion)
Pendulum swing rides focus on smooth, back-and-forth arc motion without cabin rotation, so their specialized components refine swing precision and comfort:
- Linear Servo Actuators: Dynamically adjust swing speed and arc height, ensuring gradual acceleration/deceleration to avoid jolts.
- Angle Position Sensors: Continuously track the swing’s arc angle to maintain consistent motion parameters and trigger braking at predefined limits.
🔄 Specialized Components for Spinning Pendulum Rides (Swing + Rotation)
These rides combine back-and-forth swing with simultaneous cabin rotation, requiring dual motion control systems:
- Independent Rotation Motors: Power the cabin’s spinning motion separately from the swing drive, allowing adjustable spin speeds for varying thrill levels.
- Synchronization Controllers: Align the swing’s arc with the cabin’s rotation rate to amplify the ride’s thrill while maintaining stable motion.
- Gyroscopic Stabilizers: Detect rotational drift and adjust motor output in real time to keep the cabin’s spin smooth during peak swing moments.

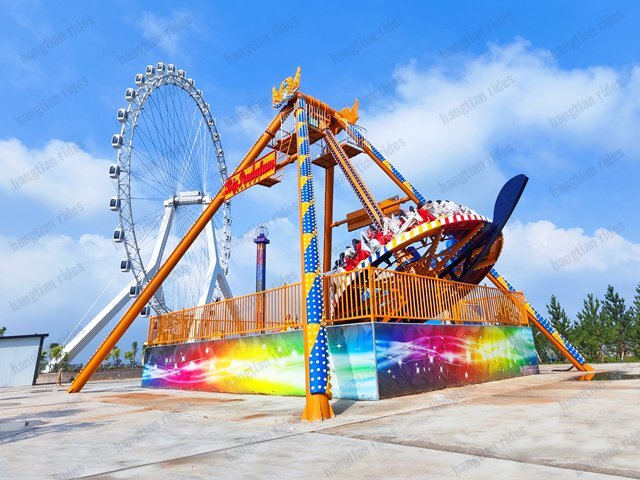

🎪 Specialized Components for Standard Pendulum Rides (Classic High-Arc Swing)
Standard pendulum rides feature wide, near-vertical arc swings with heavy structures, necessitating high-torque and stability-focused components:
- Hydraulic-Electrical Hybrid Drives: Provide the high torque needed to move large ride structures through wide arcs while optimizing energy efficiency.
- Load Distribution Sensors: Measure passenger weight distribution to adjust swing dynamics, preventing uneven motion that could compromise stability.
- Vibration Dampening Modules: Mitigate mechanical vibrations from high-arc swings, reducing wear on electrical components and enhancing rider comfort.
